The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the MIS-019-01-F-D-K connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the MIS-019-01-F-D-K connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the MIS-019-01-F-D-K connector can accommodate PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and connector orientation.
The mating cycle life of the MIS-019-01-F-D-K connector is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application and environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIS-019-01-F-D-K Overview

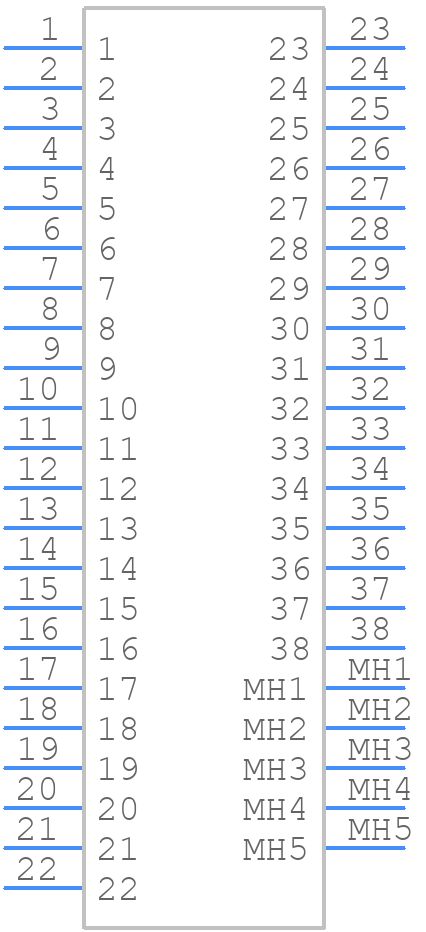

Use the download button to access the MIS-019-01-F-D-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIS-0,
or try a keyword search, such as Headers and Edge Type Connectors
