Description:The MIW03 series is a range of high performance DC-DC converter modules, designed as a cost optimized replacement for the highly popular MIW1000 series. The converter features wide 2:1 input ranges and tight output voltage regulation. Excellent efficiency allows an operating temperature up to +70℃ at full load.
The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the module. For thermal management, ensure good airflow, use a heat sink if necessary, and keep the ambient temperature within the specified range.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the module is properly grounded. Additionally, consider using EMI filters or common-mode chokes on the input and output lines.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as the ambient temperature increases. Engineers can use this curve to determine the maximum output power at a given temperature and ensure the module operates within its specifications.
Yes, the MIW03-05S05 can be used in a redundant or parallel configuration, but it requires careful consideration of the system design, including the input and output connections, thermal management, and monitoring and control circuits. Consult with the manufacturer or a qualified engineer for guidance.
The MIW03-05S05 is commonly used in industrial control systems, telecommunications, datacom, and other applications requiring a compact, high-reliability DC-DC converter. It's suitable for systems requiring a wide input range, high efficiency, and low noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW03-05S05 Overview

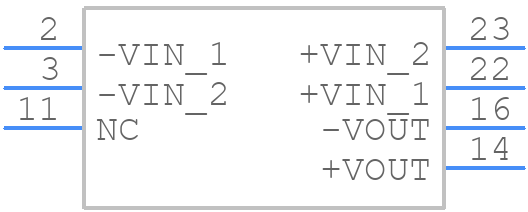

Use the download button to access the MIW03-05S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW03,
or try a keyword search, such as Power Supply Modules
