Description:The MIW06 series is a range of high performance DC-DC converter modules with 6W output power, featuring wide 2:1 input voltage ranges and fixed output voltage regulation. The product comes in a DIP-24 package with industry standard footprint. Excellent efficiency allows an operation temperature range of -40℃ to +85℃ (with derating).
The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves providing adequate airflow, using a heat sink if necessary, and keeping the operating temperature within the specified range.
To ensure EMC and EMI compliance, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the module is installed in a metal enclosure. Additionally, perform EMC and EMI testing to validate compliance with relevant standards.
The derating curves can be obtained from the manufacturer or through custom testing. Typically, the output power and efficiency will decrease as the temperature increases. For example, the output power may decrease by 1-2% per degree Celsius above 50°C.
Yes, the MIW06-24S05 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance. Consult with the manufacturer or a qualified engineer for guidance.
The recommended filtering components include input EMI filters, such as common-mode chokes and X-capacitors, and output filters, such as LC filters or pi-filters. The specific component values and configurations will depend on the application and EMC requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW06-24S05 Overview

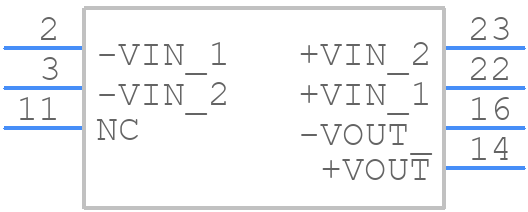

Use the download button to access the MIW06-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW06,
or try a keyword search, such as Power Supply Modules
