Description:The MIW10 series is a range of cost-optimized 10W isolated DC-DC converter within an encapsulated DIP-24 package. There are 21 models available for 12, 24, 48VDC with wide 2:1 input voltage range. By state-of-the-art circuit topology and 89% high efficiency could be achieved allowing an operating temperature of -40℃ to +85℃ as well as low standby power comsumption. Further features include remote ON/OFF, under-voltage, overload, short circuit protection and no min. load requirement as well.
OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE
Ripple Voltage (Main Out):
0.02828 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Width:
20.3 mm
MIW10-12S05 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the module. For thermal management, ensure good airflow, and consider using a heat sink or thermal pad to keep the module temperature below 80°C.
To ensure EMC compliance, follow proper PCB design and layout guidelines, use a metal enclosure, and consider adding EMI filters or shielding to the input and output lines. Additionally, ensure that the module is installed in a way that minimizes radiation and conducted emissions.
The derating curve for the MIW10-12S05 indicates that the output power should be reduced by 2.5% for every 1°C increase in ambient temperature above 40°C. This ensures reliable operation and prevents overheating.
While the MIW10-12S05 is designed to be rugged, it's essential to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB or chassis. Additionally, consider adding vibration dampening materials or shock-absorbing mounts to minimize the impact of vibrations and shocks.
While the datasheet specifies a wide input voltage range, it's recommended to operate the module within 9-12V to ensure optimal performance, efficiency, and reliability. Operating outside this range may affect the module's performance and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW10-12S05 Overview

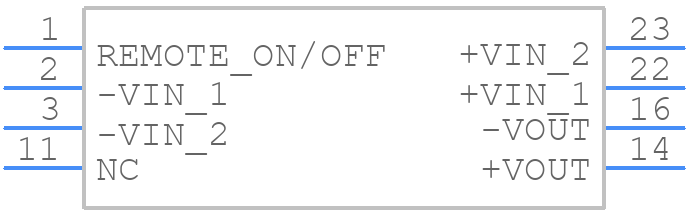

Use the download button to access the MIW10-12S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW10,
or try a keyword search, such as Power Supply Modules
