Part Image

MIW80N120NT1YHE3-BP - MCC

Description: Trench and Field Stop IGBT 1200V 80A

Download MIW80N120NT1YHE3-BP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MIW80N120NT1YHE3-BP model

Email notifications will be applied after download.

Send part feedback

Symbol

MIW80N120NT1YHE3-BP - MCC - PCB symbol

PCB Footprints

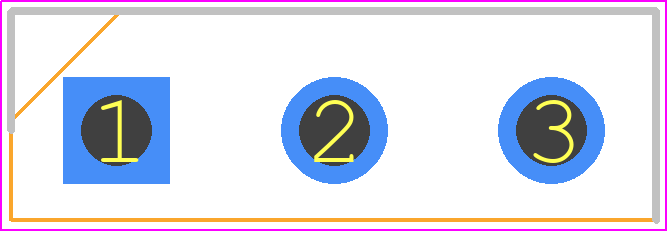

MIW80N120NT1YHE3-BP - MCC PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247AB

3D Models

MIW80N120NT1YHE3-BP - MCC - 3D model - Transistor Outline, Vertical - TO-247AB

Datasheet Download Datasheet
Stock & Prices Price & Stock for MIW80N120NT1YHE3-BP
Part Number MIW80N120NT1YHE3-BP
Manufacturer MCC
Pin Count 3
Part Category Transistor
Package Category Transistor Outline, Vertical
Footprint Name Transistor Outline, Vertical - TO-247AB
Released Date May 15, 2025
Last Modified Date May 15, 2025 5:14 AM UTC
Pinout / Pin List Click Here (Member Only)

MIW80N120NT1YHE3-BP Details

Manufacturer Part Number:
MIW80N120NT1YHE3-BP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Micro Commercial Components
YTEOL:
6
Collector-Emitter Voltage-Max:
1200 V
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
10
VCEsat-Max:
2.3 V

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MIW80N120NT1YHE3-BP Overview

Use the download button to access the MIW80N120NT1YHE3-BP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MIW80, or try a keyword search, such as IGBTs
