Description:The MIWI06 series is a range of high performance DC-DC converter modules with 6W output power, featuring ultra-wide 4:1 input voltage ranges and fixed output voltage regulation. The product comes in a DIP-24 package with industry standard footprint. Excellent efficiency allows an operation temperature range of -40℃ to +85℃.
The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves providing adequate airflow, using a heat sink if necessary, and keeping the operating temperature within the specified range.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the module is installed in a metal enclosure. Additionally, follow the manufacturer's guidelines for input and output filtering, and consider using additional EMI filters if necessary.
The derating curve is typically provided by the manufacturer and shows the reduction in output power as the ambient temperature increases. The derating curve for the MIWI06-24S05 is usually around 2-3% per degree Celsius above 50°C, which means the output power will decrease as the temperature increases.
The MIWI06-24S05 is designed to meet certain vibration and shock standards, but it's essential to consult the manufacturer's specifications and ensure that the module is properly secured and mounted to withstand the expected environmental conditions.
To troubleshoot issues, start by checking the input voltage, output load, and ambient temperature. Verify that the module is properly installed and configured. Check for signs of physical damage, and consult the manufacturer's troubleshooting guide or contact their support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIWI06-24S05 Overview

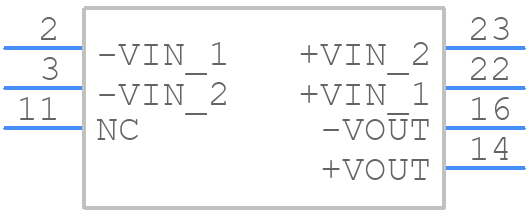

Use the download button to access the MIWI06-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIWI0,
or try a keyword search, such as Power Supply Modules
