MIZI03-48D15 footprint, schematic symbol and 3D model by Minmax

MIZI03-48D15 - Minmax

Description: The MIZI03 series, introduced by MINMAX, is a new 3W isolated DC-DC converter that has received railway certification. It features an international standard DIP-24 package with a compact and integrated overall design, making it highly suitable for space-constrained railway direct current systems. The MIZI03 series offers 15 models to choose from, all providing high-precision and stable output voltage. It is applicable to various input voltage ranges of 24 (9-36) VDC, 48 (18-75) VDC, and 72/110 (40-160) VDC

Download MIZI03-48D15 Model

Schematic
symbols

PCB
footprints

3D
models

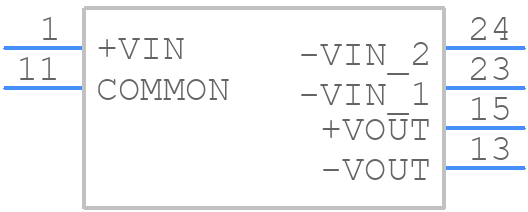

Symbol

click to zoom

PCB Footprints

MIZI03-48D15 - Minmax PCB footprint - Other - Other - MIZI03-48D15

click to zoom

3D Models

MIZI03-48D15 - Minmax - 3D model - Other - MIZI03-48D15

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MIZI03-48D15
Part Number MIZI03-48D15
Manufacturer Minmax
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - MIZI03-48D15
Released Date Jun 24, 2024
Last Modified Date Jul 24, 2024 3:15 PM UTC
Pinout / Pin List Click Here (Member Only)

MIZI03-48D15 Details

Manufacturer Part Number:
MIZI03-48D15
Manufacturer:
Minmax Technology Co Ltd

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MIZI03-48D15 Overview

Use the download button to access the MIZI03-48D15 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MIZI0, or try a keyword search, such as Power Supply Modules
