MJ-2508 - Same Sky

Description: 2.5 mm, Mono, Right Angle, Through Hole, 2 Conductors, 1 Internal Switch, Audio Jack Connector

Download MJ-2508 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MJ-2508 - Same Sky - PCB symbol
click to zoom
PCB Footprints

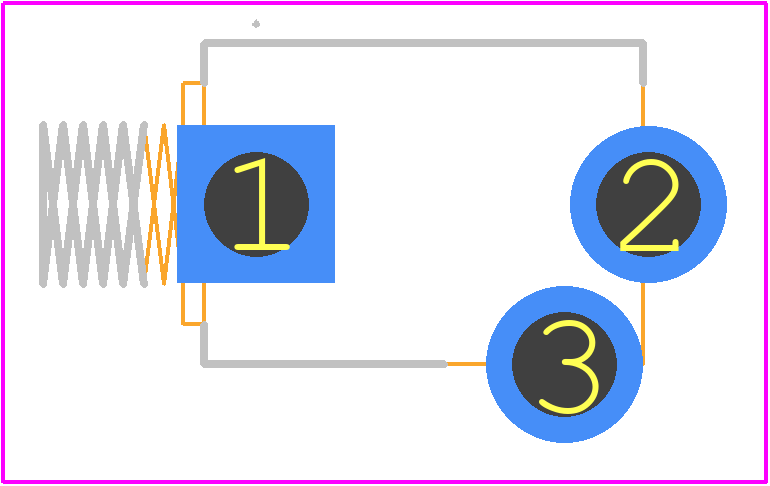

MJ-2508 - Same Sky PCB footprint - Other - Other - MJ-2508-2
click to zoom
3D Models
MJ-2508 - Same Sky - 3D model - Other - MJ-2508-2
click to zoom

MJ-2508 Details

  • Manufacturer Part Number:

    MJ-2508

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.571 inch

  • Body Length:

    0.295 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    2.5MM AUDIO

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • Insertion Force-Max:

    29.42 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    2

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Termination Type:

    SOLDER

  • Withdrawl Force-Min:

    2.942 N

MJ-2508 Frequently Asked Questions (FAQs)

  • CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. Additionally, keep the input and output traces as short as possible and use a common mode choke to reduce EMI.
  • Ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device in high-temperature environments. Also, consider derating the output power at high temperatures to prevent overheating.
  • CUI Devices recommends keeping the input and output cable lengths as short as possible, but a maximum length of 1 meter is recommended to prevent signal degradation and EMI issues.
  • Yes, the MJ-2508 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization and current sharing. Consult with CUI Devices' application engineers for guidance.
  • CUI Devices recommends using a pi-filter (C-L-C) configuration on the input and output stages to reduce EMI and noise. The specific component values will depend on the application and operating frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MJ-2508 Overview

Use the download button to access the MJ-2508 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ-25, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
