The maximum safe operating area (SOA) for the MJ1000 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. As a general rule, the MJ1000 can safely operate up to 100A and 100V, but it's recommended to derate the device to ensure reliable operation.
To ensure the MJ1000 is properly biased for linear operation, it's essential to set the base-emitter voltage (Vbe) to around 0.7V to 0.8V, and the collector-emitter voltage (Vce) to around 1V to 2V. Additionally, the base current should be limited to around 1/10th of the collector current to prevent saturation.
The recommended heatsink design for the MJ1000 involves using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and a heatsink with a thermal resistance of around 1°C/W or lower. The heatsink should also be designed to provide adequate airflow and have a surface area of at least 10 cm².
While the MJ1000 is primarily designed for linear applications, it can be used in switching applications with some caution. However, it's essential to ensure that the device is properly biased and that the switching frequency is limited to around 10 kHz to 100 kHz to prevent excessive power losses and thermal stress.
The MJ1000 should be stored in a dry, cool place away from direct sunlight and moisture. It's recommended to store the devices in their original packaging or in a sealed container with desiccant to prevent moisture absorption. When handling the devices, it's essential to use anti-static wrist straps and mats to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJ1000 Overview

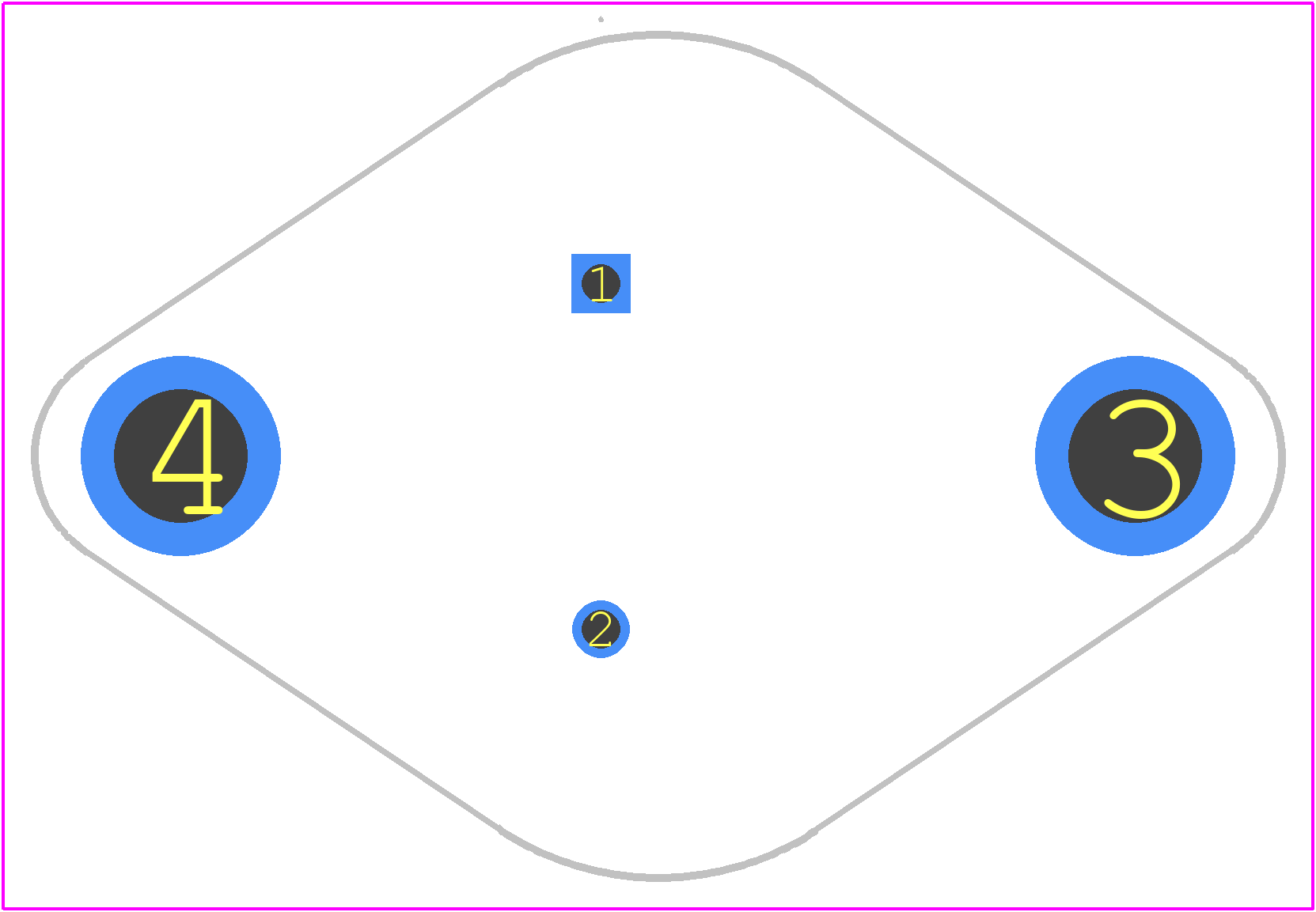

Use the download button to access the MJ1000 schematic symbol, PCB footprint, and 3D model.
