MJ10012 - NTE ELECTRONICS

Description: NPN Silicon Power Darlington Transistor

Download MJ10012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

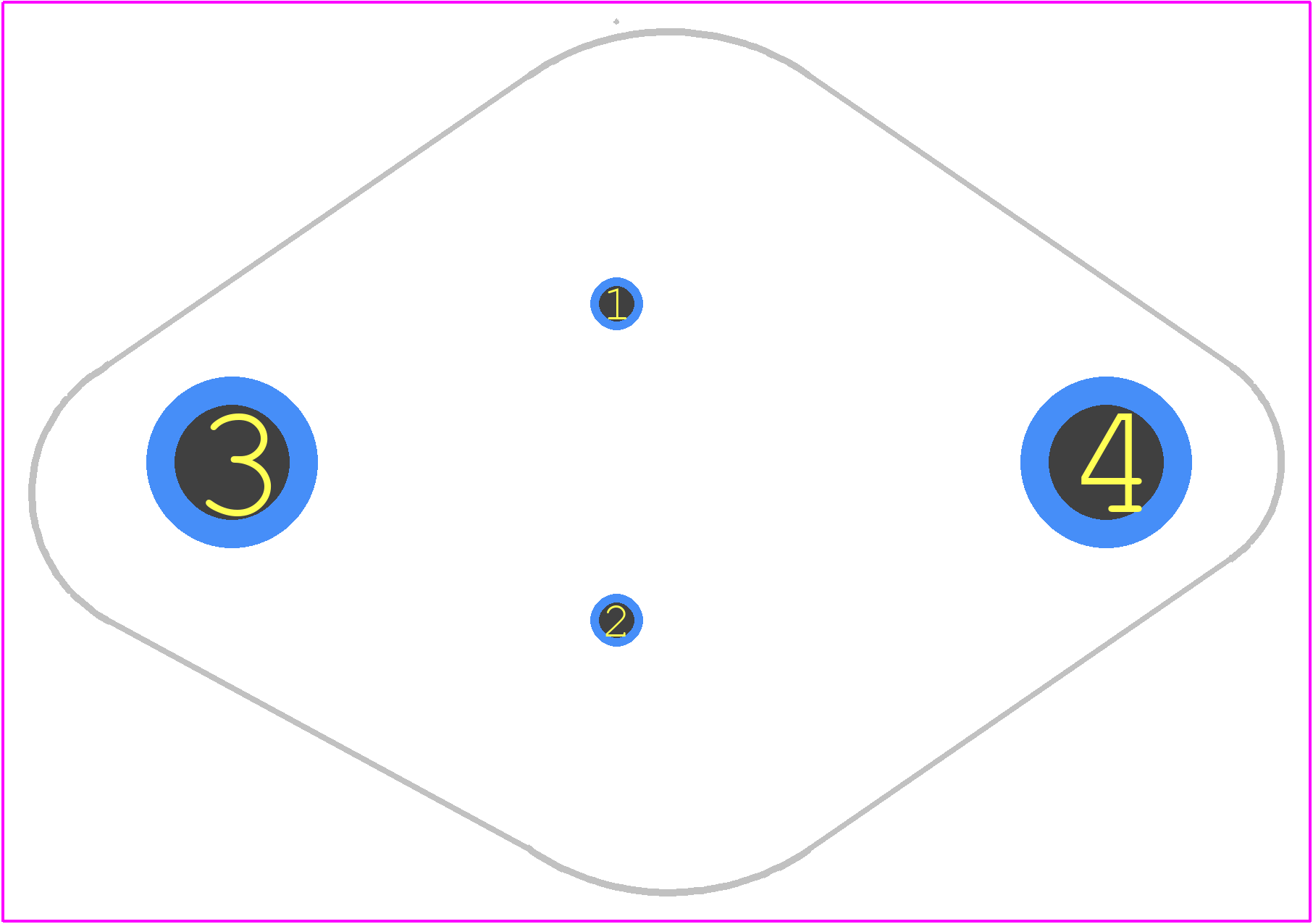

MJ10012 - NTE ELECTRONICS PCB footprint - Other - Other - MJ10012-4
click to zoom
3D Models
MJ10012 - NTE ELECTRONICS  - 3D model - Other - MJ10012-4
click to zoom

MJ10012 Details

  • Manufacturer Part Number:

    MJ10012

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    NTE Electronics Inc

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    10 A

  • Collector-Base Capacitance-Max:

    350 pF

  • Collector-Emitter Voltage-Max:

    400 V

  • Configuration:

    DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

  • DC Current Gain-Min (hFE):

    20

  • JEDEC-95 Code:

    TO-3

  • JESD-30 Code:

    O-MBFM-P2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    175 W

  • Surface Mount:

    NO

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • VCEsat-Max:

    2.5 V

MJ10012 Frequently Asked Questions (FAQs)

  • The MJ10012 can operate safely between -55°C to 150°C, but the recommended operating temperature range is -40°C to 125°C.
  • To ensure proper biasing, follow the recommended voltage and current ratings in the datasheet. Typically, a base-emitter voltage (Vbe) of 0.7V to 1.0V and a collector-emitter voltage (Vce) of 10V to 20V are suitable for most applications.
  • The maximum collector current (IC) rating for the MJ10012 is 10A. However, it's essential to consider the power dissipation and thermal management to prevent overheating.
  • While the MJ10012 can be used as a switch, it's not ideal for high-frequency applications due to its relatively high transition frequency (ft) of 30 MHz. For high-frequency applications, consider using a transistor with a higher ft rating.
  • To protect the MJ10012 from ESD, handle the device with an anti-static wrist strap or mat, and ensure the workspace is ESD-safe. Additionally, consider using ESD protection devices or circuits in your design.
