The maximum safe operating area (SOA) for the MJ11029 is not explicitly stated in the datasheet. However, it's recommended to follow the guidelines provided in the onsemi application note AND8039/D, which provides SOA curves for similar devices.
Proper thermal management is crucial for the MJ11029. Ensure a good thermal interface between the device and the heat sink, and follow the recommended thermal resistance values (RθJA and RθJC) provided in the datasheet. Additionally, consider using a heat sink with a thermal conductivity of at least 1°C/W.
The recommended gate drive voltage for the MJ11029 is typically between 10V to 15V, depending on the specific application and switching frequency. However, it's essential to ensure the gate drive voltage is within the recommended range to avoid damage to the device.
Yes, the MJ11029 is suitable for high-frequency switching applications up to 100 kHz. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure proper layout and decoupling to minimize parasitic inductance and capacitance.
To protect the MJ11029 from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD arrays, in the circuit design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJ11029 Overview

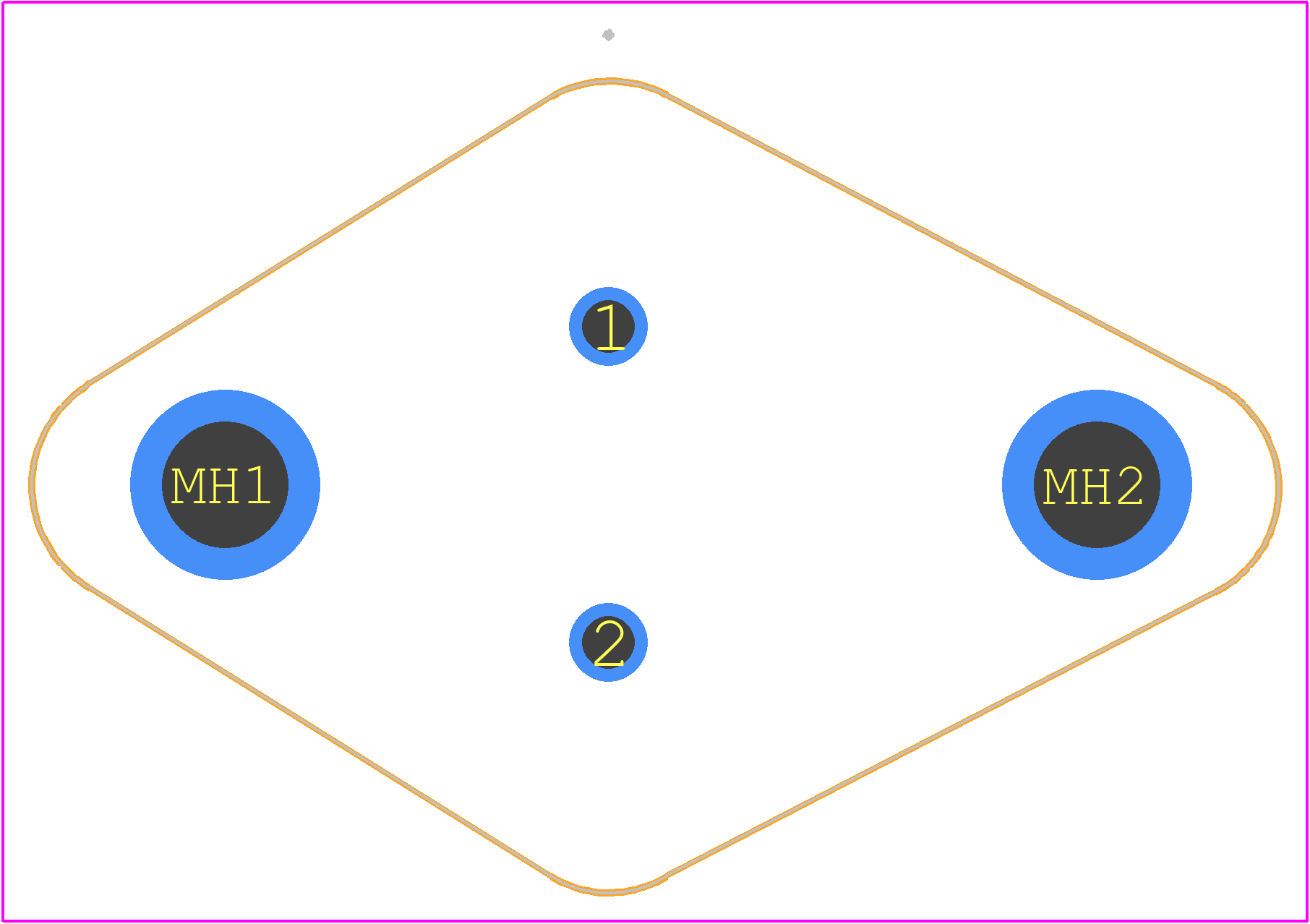

Use the download button to access the MJ11029 schematic symbol, PCB footprint, and 3D model.
