MJ15025G - onsemi

Description: High Safe Operating Area (100% Tested) - 2 A @ 80 V; High DC Current Gain - hFE = 15 (Min) @ IC = 8 Adc

Download MJ15025G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

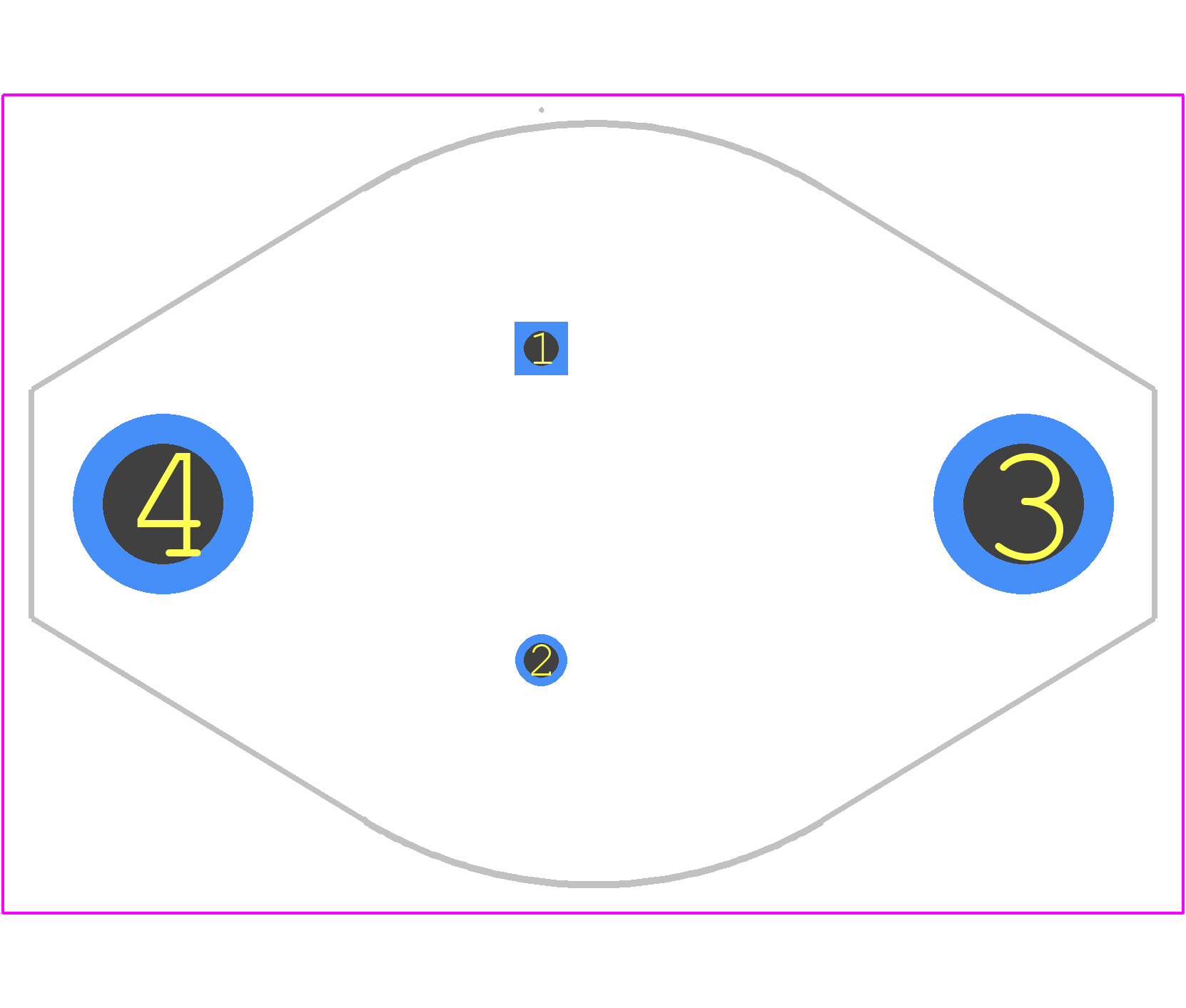

MJ15025G - onsemi PCB footprint - Other - Other - TO−204 (TO−3) CASE 1−07 ISSUE Z_25_1
click to zoom
3D Models
MJ15025G - onsemi  - 3D model - Other - TO−204 (TO−3) CASE 1−07 ISSUE Z_25_1
click to zoom

MJ15025G Details

  • Manufacturer Part Number:

    MJ15025G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-204 (TO-3)

  • Package Description:

    TO-3, 2 PIN

  • Pin Count:

    2

  • Manufacturer Package Code:

    1-07

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    16 A

  • Collector-Emitter Voltage-Max:

    250 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    5

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    250 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    4 MHz

MJ15025G Frequently Asked Questions (FAQs)

  • The maximum safe operating area (SOA) for the MJ15025G is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A safe operating area can be assumed to be within the boundaries of Vce = 100V, Ic = 15A, and Pd = 125W.
  • To ensure the MJ15025G is properly biased for linear operation, the base-emitter voltage (Vbe) should be around 0.65-0.7V, and the collector-emitter voltage (Vce) should be around 1-2V. The base current should be limited to prevent saturation, and the collector current should be within the recommended operating range.
  • The recommended heatsink design for the MJ15025G involves using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and a heatsink with a thermal resistance of around 1-2°C/W. The heatsink should be designed to keep the junction temperature below 150°C.
  • While the MJ15025G is primarily designed for linear applications, it can be used in switching applications with some caution. The device's switching characteristics, such as turn-on and turn-off times, should be carefully evaluated to ensure it meets the requirements of the specific application.
  • To protect the MJ15025G from electrostatic discharge (ESD), it is recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, in the circuit design. Additionally, proper handling and storage procedures should be followed to prevent ESD damage.
