MJ21194G - onsemi

Description: Bipolar (BJT) Transistor NPN 250 V 16 A 4MHz 250 W Through Hole TO-204 (TO-3)

Download MJ21194G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MJ21194G - onsemi - PCB symbol
click to zoom
PCB Footprints

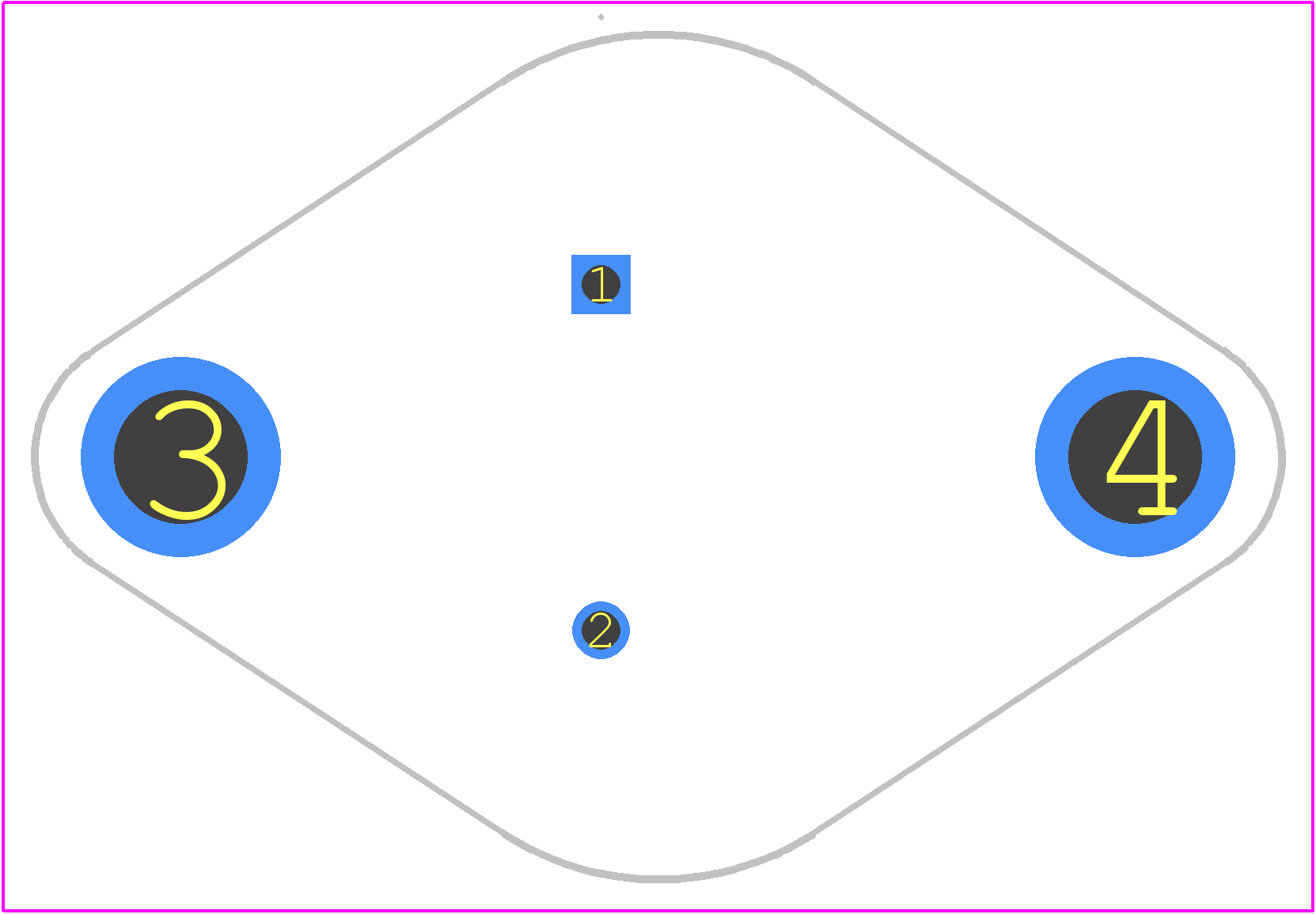

MJ21194G - onsemi PCB footprint - Other - Other - TO−204 (TO−3)CASE 1−07ISSUE Z
click to zoom
3D Models
MJ21194G - onsemi - 3D model - Other - TO−204 (TO−3)CASE 1−07ISSUE Z
click to zoom

MJ21194G Details

  • Manufacturer Part Number:

    MJ21194G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-204 (TO-3)

  • Package Description:

    TO-3, 2 PIN

  • Pin Count:

    2

  • Manufacturer Package Code:

    1-07

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    16 A

  • Collector-Emitter Voltage-Max:

    250 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    8

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    250 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    4 MHz

MJ21194G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal relief pattern can be used to reduce thermal resistance.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce junction temperature. Monitor the device's thermal resistance (RθJA) and ensure it is within the specified range.
  • Use a soldering temperature of 260°C (max) with a dwell time of 10-30 seconds. Avoid using excessive soldering temperatures or prolonged exposure to high temperatures, as this can damage the device.
  • Handle the device in an ESD-controlled environment. Use ESD-protective packaging, wrist straps, and mats. Ground all equipment and personnel before handling the device. Avoid touching the device's pins or leads.
  • Store the device in a dry, cool place (RH < 60%, T < 30°C). Avoid exposing the device to direct sunlight, moisture, or extreme temperatures. Use anti-static packaging and follow ESD precautions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MJ21194G Overview

Use the download button to access the MJ21194G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ211, or try a keyword search, such as Power Bipolar Transistors
