MJW10-24S05 - Minmax

Description: The MJW10 series is a range of cost-optimized 10W isolated DC-DC converter within an encapsulated 1"x1" industrial standard package. The MJW10 series come in a shielded metal package and conducted EMI EN 55032 Class A approved without external components. By state-of-the-art circuit topology and 89% high efficiency could be achieved allowing an operating temperature of -40℃ to +80℃ as well as low standby power consumption.

Download MJW10-24S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

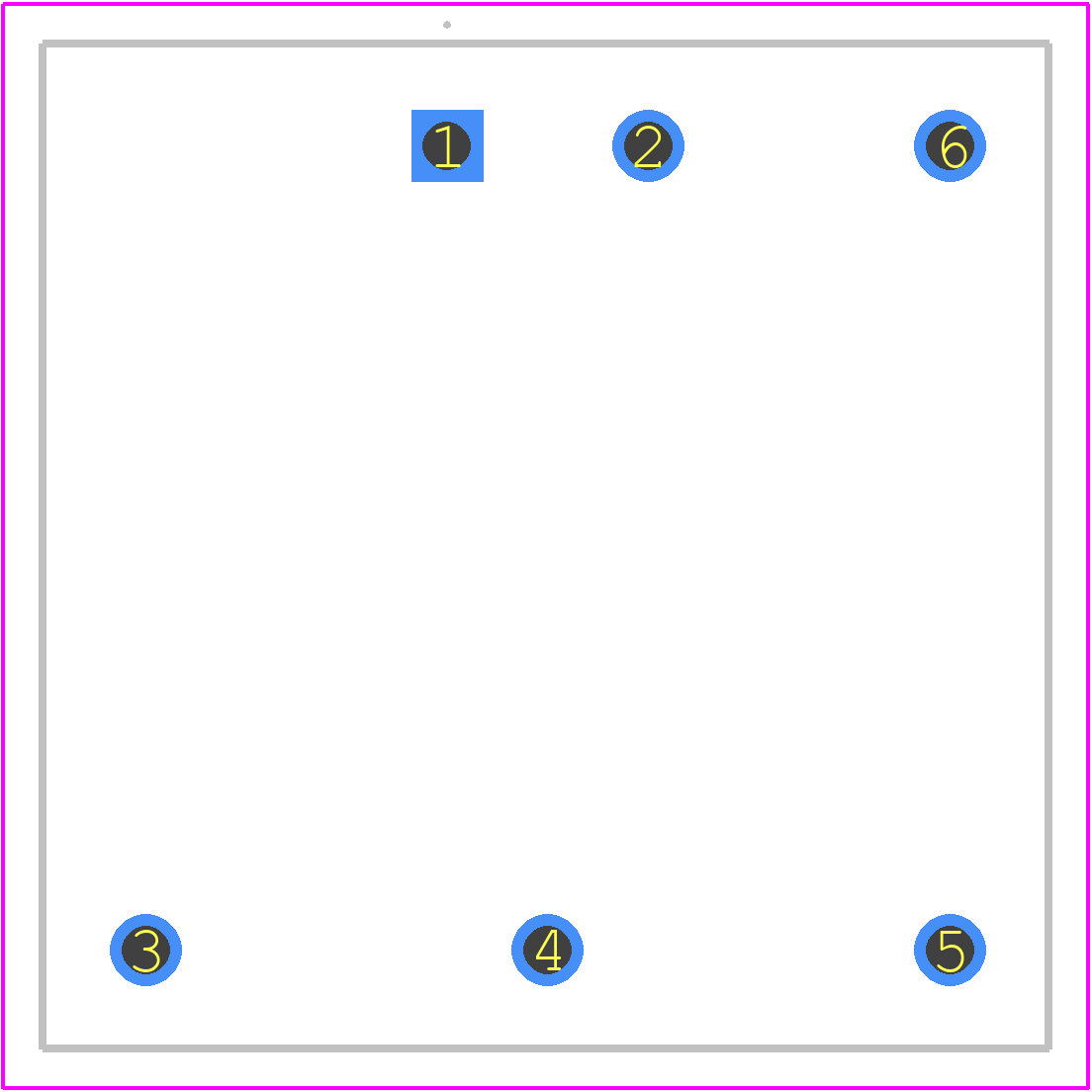

MJW10-24S05 - Minmax PCB footprint - Other - Other - MJW10
click to zoom
3D Models
MJW10-24S05 - Minmax  - 3D model - Other - MJW10
click to zoom

MJW10-24S05 Details

  • Manufacturer Part Number:

    MJW10-24S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    25.4 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.02828 Vrms

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

MJW10-24S05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the converter on a multi-layer PCB with a solid ground plane, using thermal vias to dissipate heat, and keeping the PCB area around the converter clear of components to ensure good airflow.
  • To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the specified range during start-up and shutdown. Additionally, add a soft-start circuit to limit the inrush current.
  • The derating curves for the converter's output power and efficiency at high temperatures can be obtained from the manufacturer or through testing. As a general guideline, the output power may need to be derated by 1-2% per degree Celsius above 50°C, and the efficiency may decrease by 0.5-1% per degree Celsius above 50°C.
  • To protect the converter from input voltage surges and spikes, add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input, and ensure that the input filter capacitors are rated for the maximum expected input voltage.
  • The recommended input and output capacitors for optimal performance are low-ESR ceramic or film capacitors with a voltage rating that exceeds the maximum input or output voltage. The capacitor values should be selected based on the converter's input and output ripple current requirements.
