MJW25-12S05-HS footprint, schematic symbol and 3D model by Minmax

MJW25-12S05-HS - Minmax

Description: The MJW25 series is the generation of high-performance DC-DC converter modules with very high power density. The product offers fully 25W in a shielded metal package with dimensions of just 1.0"x1.0"x0.4". All models provide wide 2:1 input range and tightly regulated output voltage. By state-of-the-art circuit topology a very high efficiency up to 90% could be achieved allowing an operating temperature range of -40℃ to +80℃ (with derating). *With heatsink

Download MJW25-12S05-HS Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

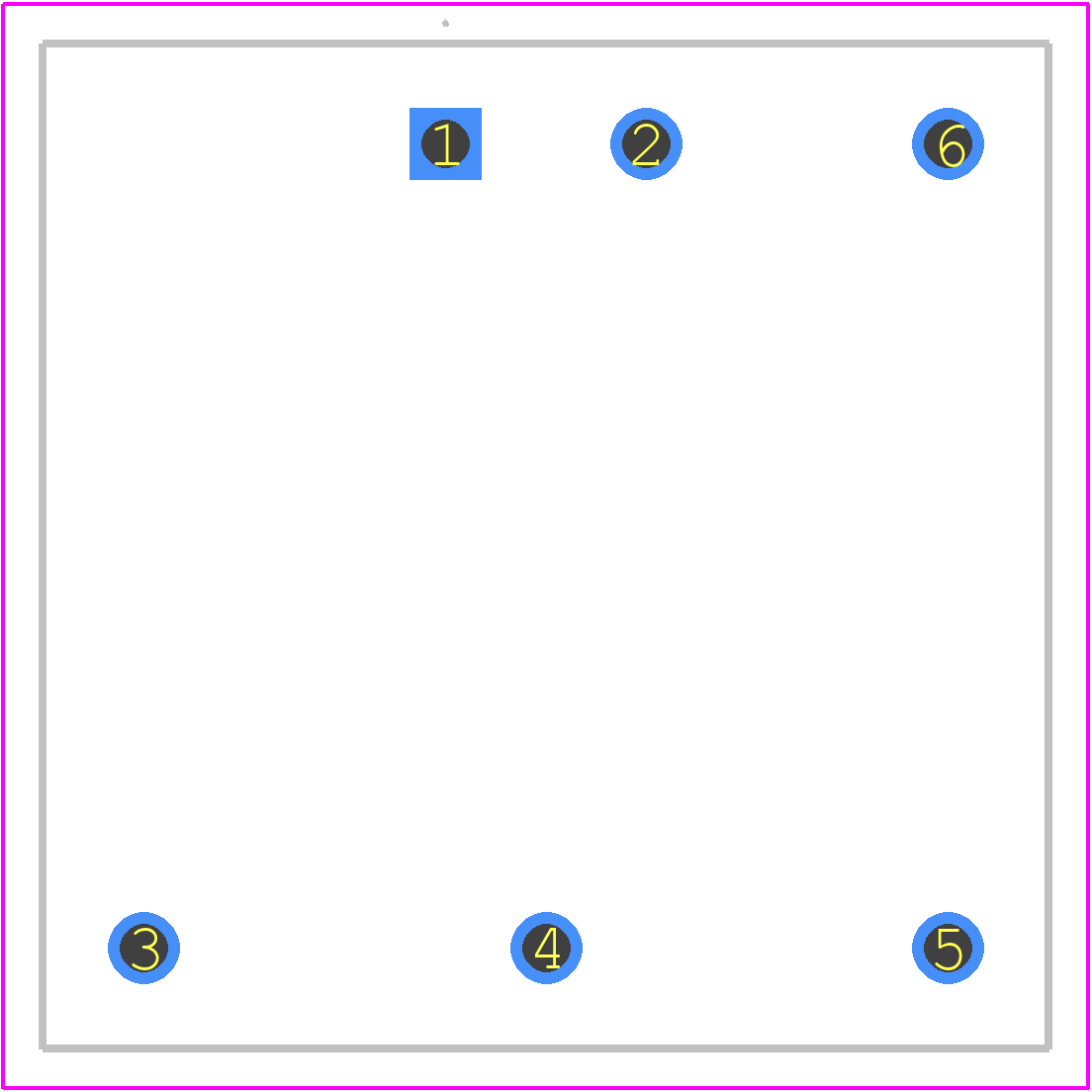

PCB Footprints

MJW25-12S05-HS - Minmax PCB footprint - Other - Other - MJW25-12S05-HS-1

click to zoom

3D Models

MJW25-12S05-HS - Minmax - 3D model - Other - MJW25-12S05-HS-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MJW25-12S05-HS
Part Number MJW25-12S05-HS
Manufacturer Minmax
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - MJW25-12S05-HS-1
Released Date Jun 24, 2024
Last Modified Date Jul 24, 2024 3:15 PM UTC
Pinout / Pin List Click Here (Member Only)

MJW25-12S05-HS Details

Manufacturer Part Number:
MJW25-12S05-HS
Manufacturer:
Minmax Technology Co Ltd

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MJW25-12S05-HS Overview

Use the download button to access the MJW25-12S05-HS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MJW25, or try a keyword search, such as Power Supply Modules
