MJWI10-24S033 - Minmax

Description: TheMJWI10 series are cost optimized DC-DC converter modules offering 10W output power in a 1"x1"x0.4" shielded metal package with industry standard pinout. All models provide ultra-wide 4:1 input voltage range and fixed output voltage regulation. State-of-the-art circuit topology provides a high efficiency up to 87% which allows an operating temperature range of -40℃ to +80℃.

Download MJWI10-24S033 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

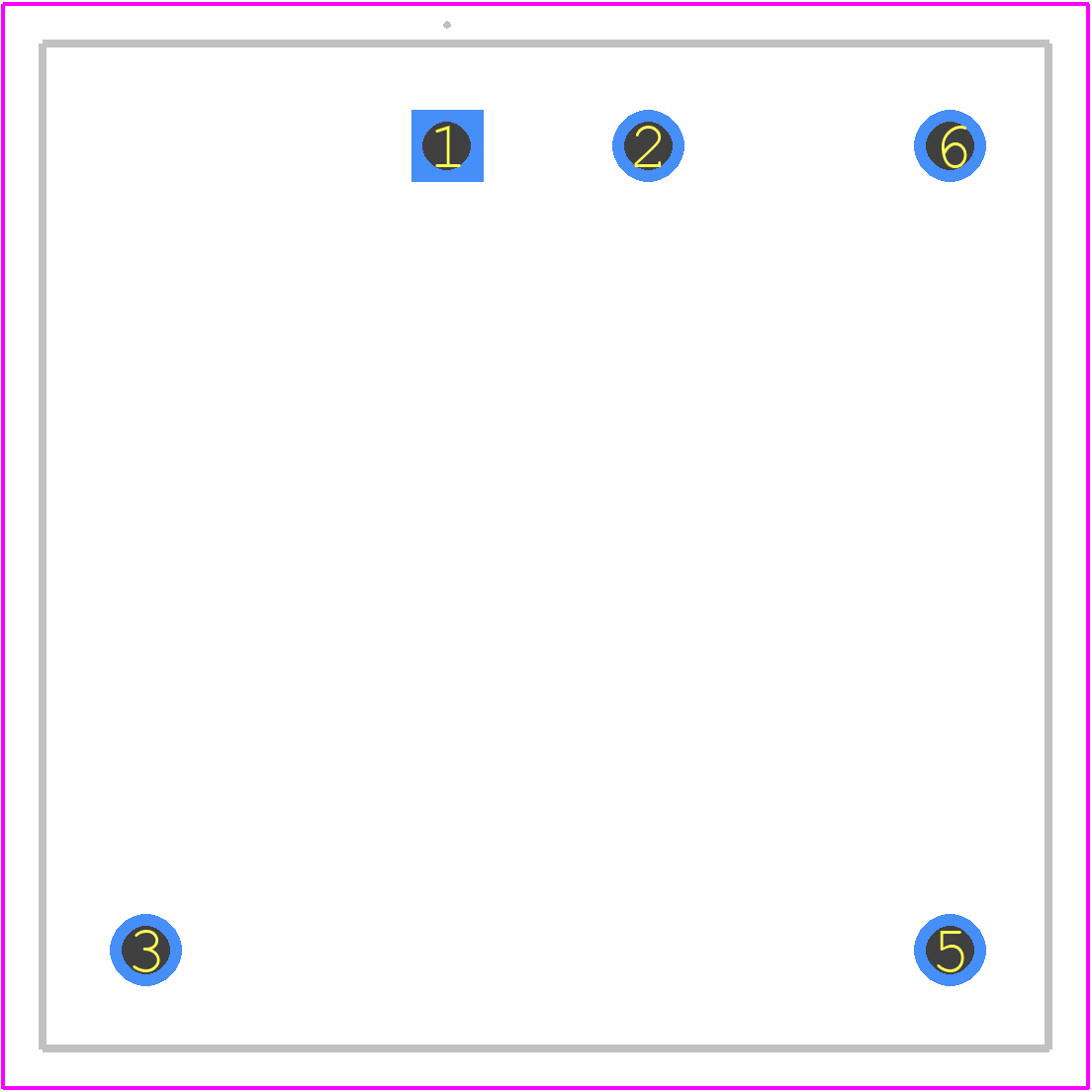

MJWI10-24S033 - Minmax PCB footprint - Other - Other - MJWI10_S_Inch
click to zoom
3D Models
MJWI10-24S033 - Minmax  - 3D model - Other - MJWI10_S_Inch
click to zoom

MJWI10-24S033 Details

  • Manufacturer Part Number:

    MJWI10-24S033

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CE, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    86%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.2 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, SHORT CIRCUIT, UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

MJWI10-24S033 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the input and output capacitors close to the DC-DC converter, using a solid ground plane, and minimizing the loop area of the input and output traces. For thermal management, ensure good airflow around the converter, and consider adding a heat sink or thermal pad to the device.
  • To ensure EMC, follow proper PCB design and layout guidelines, use a metal enclosure or shielded case, and add EMI filters or common-mode chokes as needed. Additionally, ensure that the converter is properly grounded and that all cables and connectors are shielded.
  • The derating curve for the MJWI10-24S033 is typically provided by the manufacturer upon request. However, as a general guideline, the output power of the converter may need to be derated by 1-2% per degree Celsius above the recommended operating temperature range to ensure reliable operation.
  • Yes, the MJWI10-24S033 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance. Consult with the manufacturer or a qualified engineer for guidance on implementing such a configuration.
  • When using the MJWI10-24S033 in a high-reliability or safety-critical system, ensure that the converter is properly validated and tested for the specific application. Follow the manufacturer's guidelines for fault detection and protection, and consider implementing redundant or backup power supplies to ensure system availability.
