MJWI10-24S05 - Minmax

Description: TheMJWI10 series are cost optimized DC-DC converter modules offering 10W output power in a 1"x1"x0.4" shielded metal package with industry standard pinout. All models provide ultra-wide 4:1 input voltage range and fixed output voltage regulation. State-of-the-art circuit topology provides a high efficiency up to 87% which allows an operating temperature range of -40℃ to +80℃.

Download MJWI10-24S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

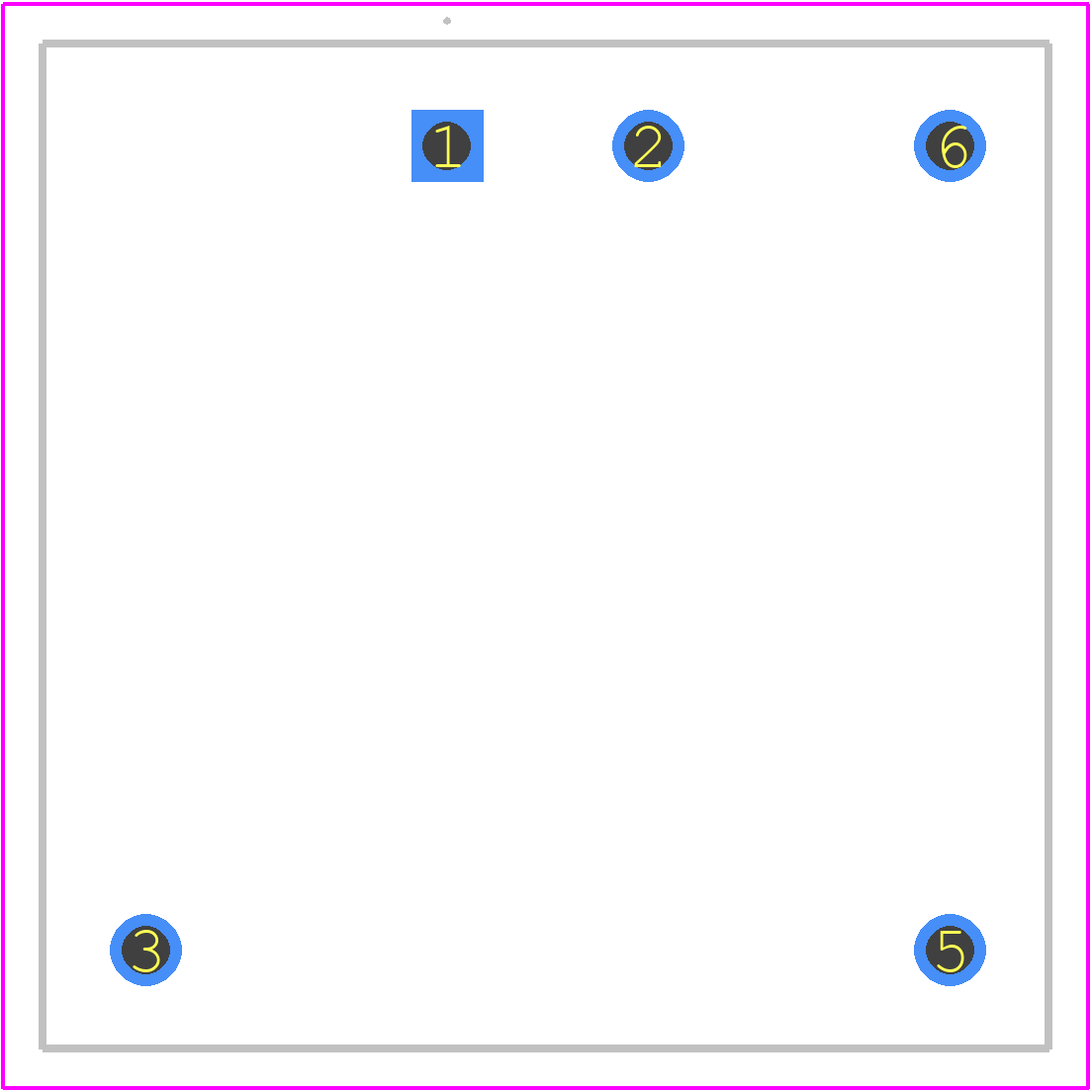

MJWI10-24S05 - Minmax PCB footprint - Other - Other - MJWI10-24S05
click to zoom
3D Models
MJWI10-24S05 - Minmax  - 3D model - Other - MJWI10-24S05
click to zoom

MJWI10-24S05 Details

  • Manufacturer Part Number:

    MJWI10-24S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CE, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    84%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, SHORT CIRCUIT, UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

MJWI10-24S05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the converter on a multi-layer PCB with a solid ground plane, using thermal vias to dissipate heat, and keeping the PCB area around the converter clear of components to ensure good airflow.
  • To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the specified range during start-up and shutdown. Additionally, add a soft-start circuit to limit the inrush current.
  • The derating curves for the converter's output power and efficiency at high temperatures can be obtained from the manufacturer or through testing. As a general guideline, the output power derates by 1-2% per degree Celsius above 50°C, and the efficiency derates by 0.5-1% per degree Celsius above 50°C.
  • To protect the converter from input voltage transients and surges, add a TVS (transient voltage suppressor) diode or a varistor in parallel with the input voltage, and consider adding a fuse or a current limiter to prevent overcurrent conditions.
  • The recommended input capacitor type is a low-ESR ceramic or film capacitor with a value of 10-22 μF, depending on the input voltage and frequency. The capacitor should be placed as close as possible to the converter's input pins.
