MJWI20-48S24 - Minmax

Description: The MJWI20 series is a new generation of high performance DC-DC converter modules setting a new standard concerning power density. The product offers fully 20W in a shielded metal package with dimensions of just 1.0"x1.0"x 0.4". All models provide ultra-wide 4:1 input voltage range and tight output voltage regulation. State-of the-art circuit topology provides a very high efficiency up to 89% which allows an operating temperature range of -40℃ to +85℃. Further features include remote On/Off, trimmable outpu

Download MJWI20-48S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MJWI20-48S24 - Minmax - PCB symbol
click to zoom
PCB Footprints

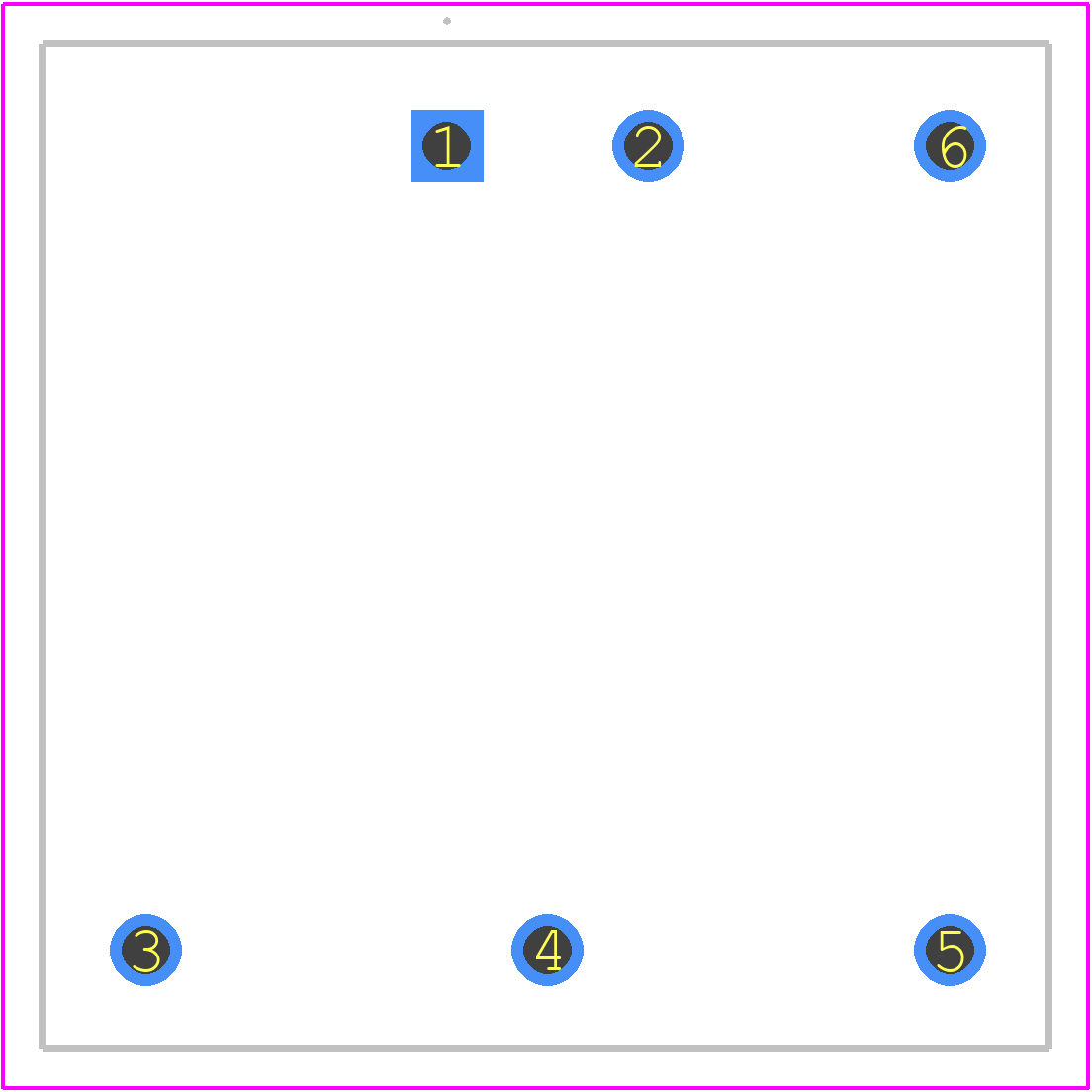

MJWI20-48S24 - Minmax PCB footprint - Other - Other - MJWI20-48S24
click to zoom
3D Models
MJWI20-48S24 - Minmax - 3D model - Other - MJWI20-48S24
click to zoom

MJWI20-48S24 Details

  • Manufacturer Part Number:

    MJWI20-48S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.835 A

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    21.6 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MJWI20-48S24 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for optimal performance can be found in the Minmax Technology Co Ltd application note AN-101, which provides guidelines for PCB design, thermal management, and component placement.
  • The MJWI20-48S24 is designed to meet various safety standards, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, follow the recommended layout and component selection guidelines, and consult with a qualified safety engineer or testing laboratory.
  • The maximum allowable capacitance for the output filter capacitors is 220uF. Exceeding this value may affect the stability and performance of the DC-DC converter.
  • The MJWI20-48S24 is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-temperature applications. Consult with Minmax Technology Co Ltd or a qualified thermal engineer to determine the suitable operating temperature range for your specific application.
  • Consult the Minmax Technology Co Ltd troubleshooting guide, which provides step-by-step procedures for identifying and resolving common issues. Additionally, contact Minmax Technology Co Ltd technical support for further assistance.
