MJWI25-24S12 - Minmax

Description: DC-DC CONVERTER 25W, Highest Power Density,Operating Ambient Temp. Range -40℃ to +80℃

Download MJWI25-24S12 Model

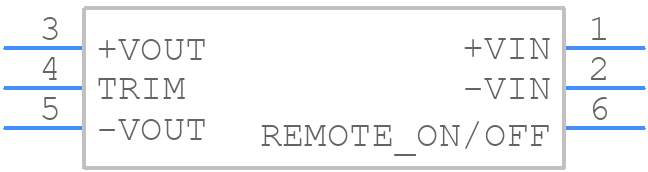

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

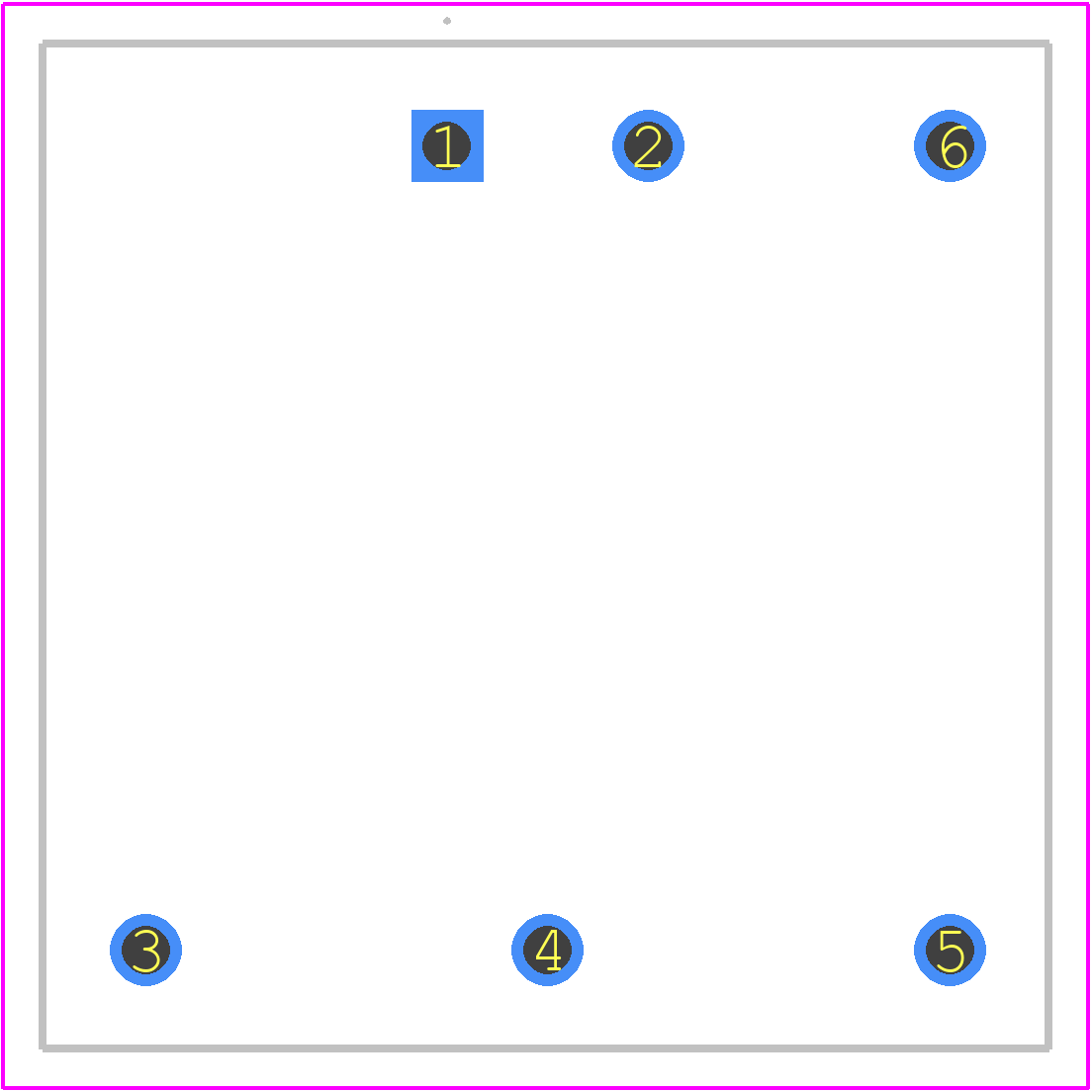

MJWI25-24S12 - Minmax PCB footprint - Other - Other - MJWI25-24S12-2
click to zoom
3D Models
MJWI25-24S12 - Minmax  - 3D model - Other - MJWI25-24S12-2
click to zoom

MJWI25-24S12 Details

  • Manufacturer Part Number:

    MJWI25-24S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CE, CSA, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.09 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    25 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MJWI25-24S12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the DC-DC converter near the input voltage source, using a solid ground plane, and keeping the output voltage traces as short as possible. For thermal management, ensure good airflow around the converter, and consider adding a heat sink or thermal pad to the device.
  • To ensure EMC, follow proper PCB layout and grounding practices, use a metal enclosure or shielded case, and add EMI filters or common-mode chokes as needed. Additionally, consider using a ferrite bead or inductor in series with the input voltage to reduce high-frequency noise.
  • The maximum allowable capacitance on the output is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the output capacitance below 10uF to avoid stability issues. However, it's best to consult with Minmax Technology Co Ltd or perform thorough testing to determine the optimal output capacitance for your specific application.
  • While the MJWI25-24S12 is designed to be reliable, it's essential to ensure that the converter is properly secured to the PCB and the PCB is securely fastened to the chassis or enclosure. Additionally, consider using vibration-resistant components and connectors, and perform thorough testing to validate the converter's performance in your specific environment.
  • The typical efficiency of the MJWI25-24S12 is around 85-90% at full load, but it can vary depending on the input voltage, output voltage, and load conditions. For a more accurate estimate, consult the efficiency curves provided in the datasheet or contact Minmax Technology Co Ltd for specific data.
