Description:The MK2302-01 is a high performance Zero Delay Buffer (ZDB) which integrates IDT's proprietary analog/digital Phase Locked Loop (PLL) techniques. The chip is part of IDT's ClockBlocksTM family and was designed as a performance upgrade to meet today's higher speed and lower voltage requirements. The zero delay feature means that the rising edge of the input clock aligns with the rising edges of both output clocks, giving the appearance of no delay through the device. There are two outputs on the chip, one be
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and take corrective action if necessary.
The MK2302S-01ILF has built-in ESD protection diodes on all pins, which provide a certain level of protection against electrostatic discharge. However, it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, the device is designed with latch-up protection circuits, but it's essential to follow the recommended operating conditions and avoid excessive voltage or current stress.
The MK2302S-01ILF is an industrial-grade device, but it's not specifically designed for automotive applications. If you need to use it in an automotive application, you should consult with Renesas' automotive support team to ensure it meets the required automotive standards and specifications.
Renesas provides a recommended soldering profile in their packaging and assembly guidelines document, which includes temperature and time profiles for reflow soldering, wave soldering, and hand soldering. It's essential to follow these guidelines to ensure reliable solder joints and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MK2302S-01ILF Overview

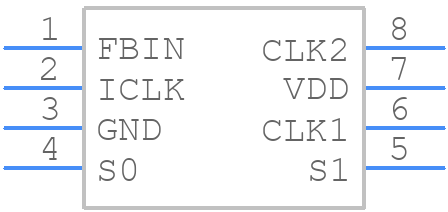

Use the download button to access the MK2302S-01ILF schematic symbol, PCB footprint, and 3D model.
