MKDSN 1.5/10 footprint, schematic symbol and 3D model by Phoenix Contact

Symbol

click to zoom

PCB Footprints

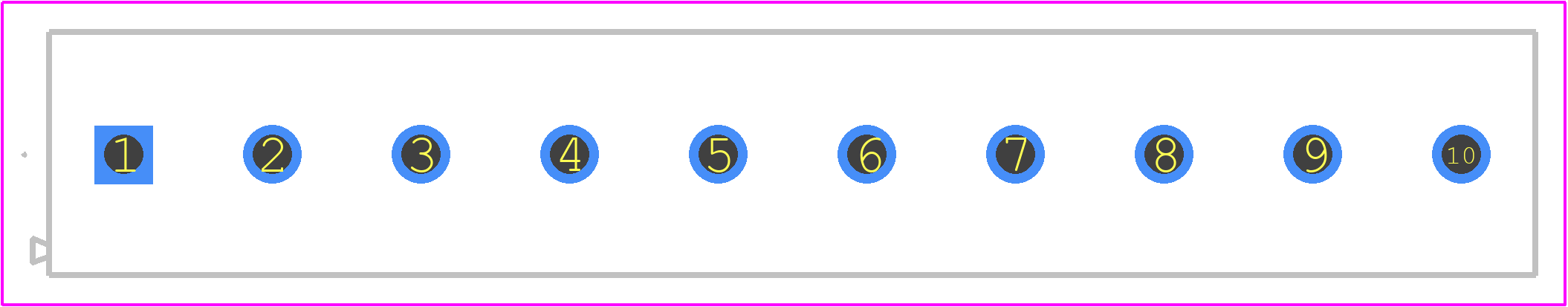

MKDSN 1.5/10 - Phoenix Contact PCB footprint - Other - Other - MKDSN 1.5/10-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MKDSN 1.5/10
Part Number MKDSN 1.5/10
Manufacturer Phoenix Contact
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - MKDSN 1.5/10-2
Released Date Oct 4, 2024
Last Modified Date Oct 4, 2024 5:24 AM UTC
Pinout / Pin List Click Here (Member Only)

MKDSN 1.5/10 Details

Manufacturer Part Number:
MKDSN 1.5/10
Manufacturer:
Phoenix Contact

Trust Checks

Community Provided

System Verified

Community Approved

MKDSN 1.5/10 Overview

Use the download button to access the MKDSN 1.5/10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MKDSN, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
