MKE15-24S15HI - Minmax

Description: The MKE15-HI series is a range of high performance 15W DC-DC converter within encapsulated 2"x1" package which specifically design for high isolation applications where reinforced insulation and high working voltage are required. There are 21 models available for input voltage of 12, 24, 48VDC with wide 2:1 input range and fixed output voltage. The I/O isolation is specified for 8000VDC with reinforced insulation, which rated for 1000Vrms working voltage. Further features include under-voltage, overload, ov

Download MKE15-24S15HI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

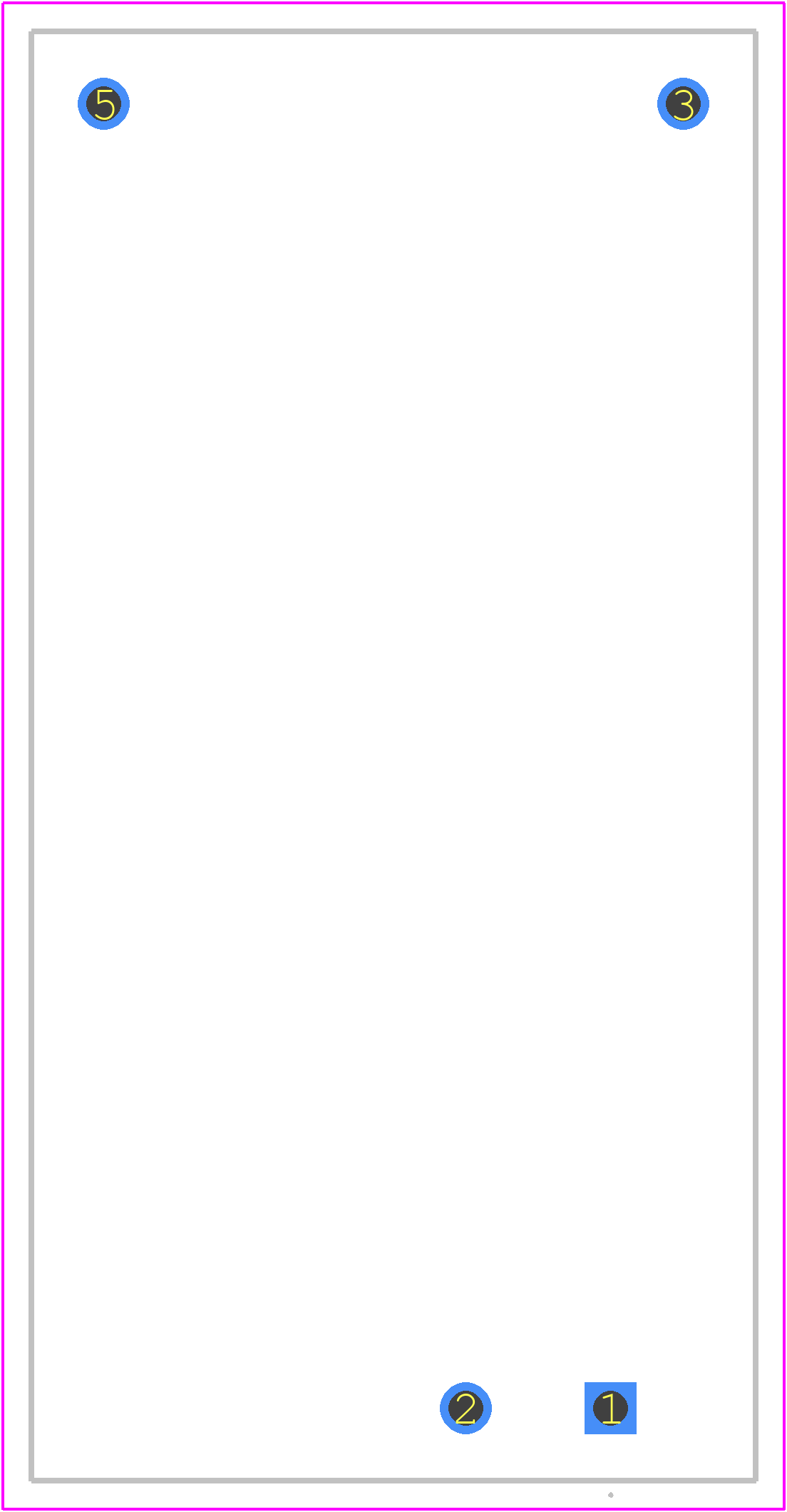

MKE15-24S15HI - Minmax PCB footprint - Other - Other - MKE15-24S15HI-1
click to zoom
3D Models
MKE15-24S15HI - Minmax  - 3D model - Other - MKE15-24S15HI-1
click to zoom

MKE15-24S15HI Details

  • Manufacturer Part Number:

    MKE15-24S15HI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5/4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CE, CUL, IEC, UL

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-P4

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,4/5LEAD,1.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    12.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MKE15-24S15HI Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
  • To ensure EMC and reduce EMI, use a metal shielded enclosure, keep the converter away from sensitive components, use a common-mode choke, and follow proper PCB layout and grounding techniques. Additionally, consider using EMI filters or shielding on the input and output lines.
  • The maximum allowable capacitance on the output is typically limited to 10-20uF. Exceeding this value can affect the converter's stability and cause oscillations. It's essential to follow the recommended output capacitance value and type to ensure stable operation.
  • To protect the converter from input voltage surges and spikes, use a TVS (transient voltage suppressor) diode or a varistor on the input line. Additionally, consider adding a fuse or a current limiter to prevent overcurrent conditions.
  • The recommended input voltage range for optimal efficiency and reliability is typically within 10-15% of the nominal input voltage. Operating outside this range may affect the converter's efficiency, reliability, and lifespan.
