MKP1847H55035JP4 - Vishay

Description: 5 µF Film Capacitor 350V 700V Polypropylene (PP), Metallized Radial - 4 Leads

Download MKP1847H55035JP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1847H55035JP4 - Vishay - PCB symbol
click to zoom
PCB Footprints

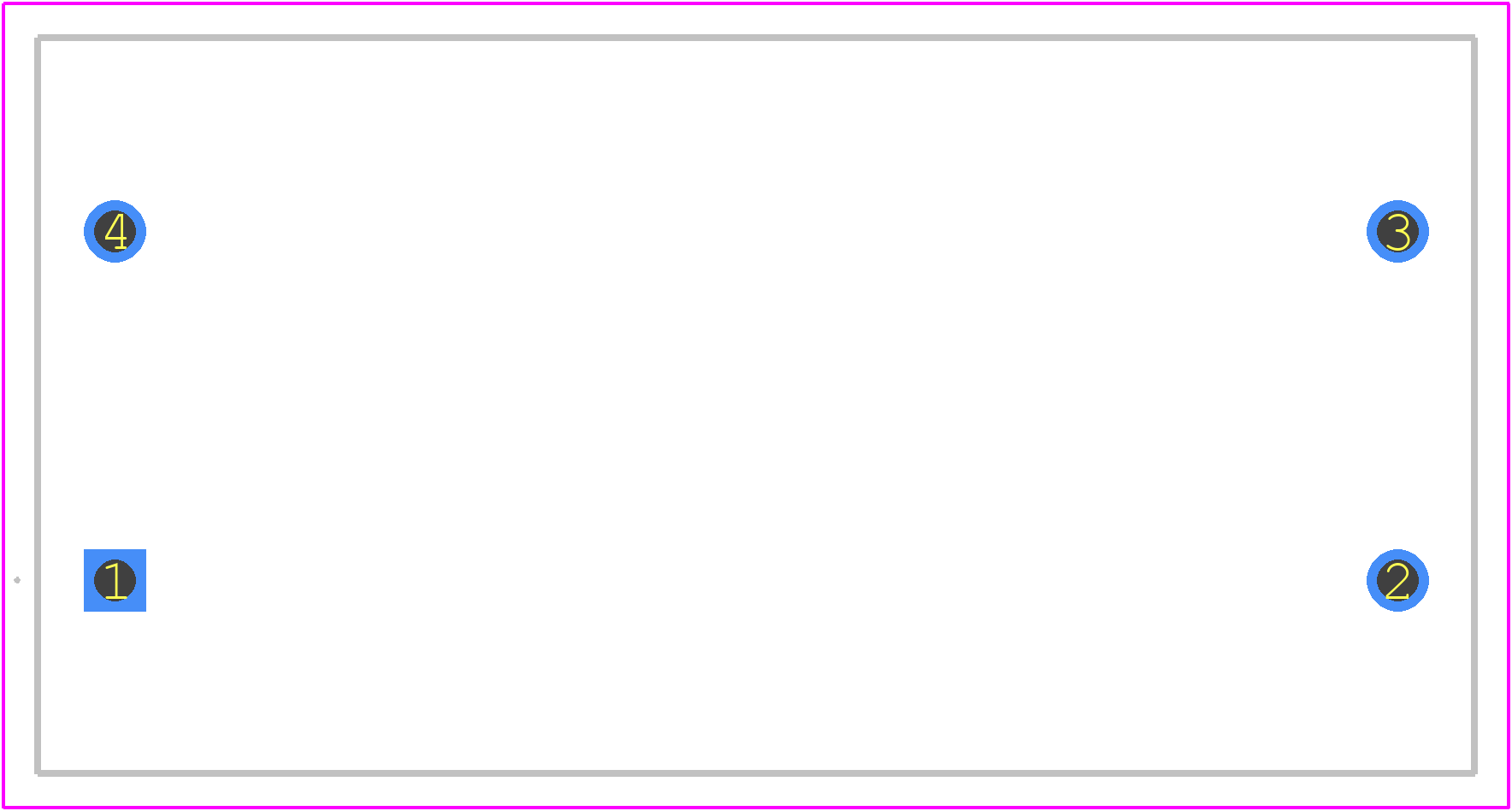

MKP1847H55035JP4 - Vishay PCB footprint - Other - Other - MKP1847H55035JP4-2
click to zoom
3D Models
MKP1847H55035JP4 - Vishay - 3D model - Other - MKP1847H55035JP4-2
click to zoom

MKP1847H55035JP4 Details

  • Manufacturer Part Number:

    MKP1847H55035JP4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    5 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    38.5 mm

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    350 V

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    CUL, IEC61071, IEC60068, UL

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    21.5 mm

MKP1847H55035JP4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1847H55035JP4 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The MSL of the MKP1847H55035JP4 is MSL 2, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity.
  • Yes, the MKP1847H55035JP4 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 10 G peak acceleration.
  • The shelf life of the MKP1847H55035JP4 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under recommended storage conditions.
