MKP1847H61025JP4 - Vishay

Description: 10 µF Film Capacitor 250V 500V Polypropylene (PP), Metallized Radial - 4 Leads

Download MKP1847H61025JP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1847H61025JP4 - Vishay - PCB symbol
click to zoom
PCB Footprints

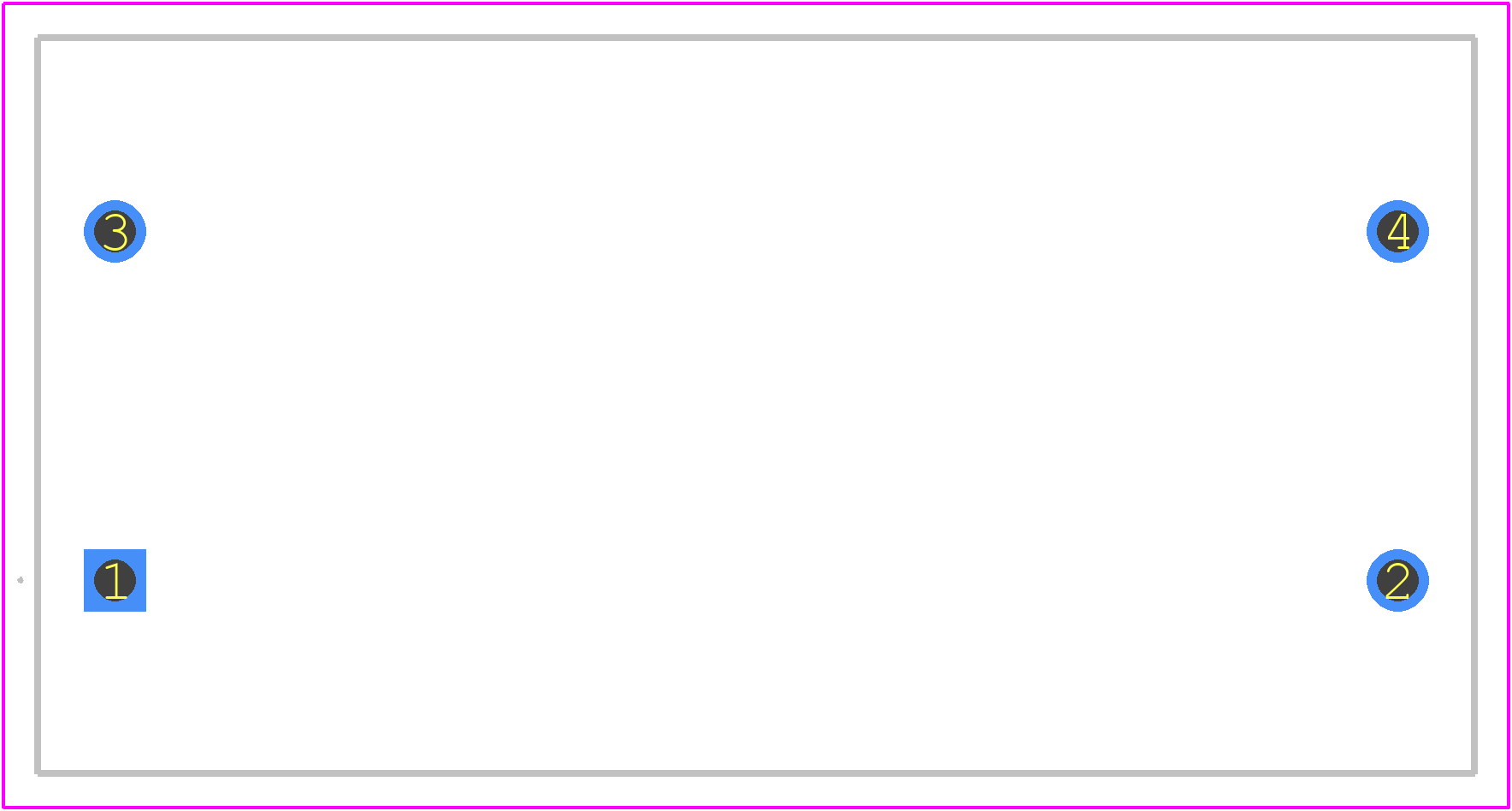

MKP1847H61025JP4 - Vishay PCB footprint - Other - Other - MKP1847H61025JP4-1
click to zoom
3D Models
MKP1847H61025JP4 - Vishay - 3D model - Other - MKP1847H61025JP4-1
click to zoom

MKP1847H61025JP4 Details

  • Manufacturer Part Number:

    MKP1847H61025JP4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    38.5 mm

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    250 V

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    CUL, IEC61071, IEC60068, UL

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    21.5 mm

MKP1847H61025JP4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1847H61025JP4 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, MKP1847H61025JP4 is designed for high-frequency applications up to 100 kHz, making it suitable for use in switching power supplies, filters, and resonant circuits.
  • While MKP1847H61025JP4 is designed to operate in a wide range of temperatures, it's not recommended for use in humid environments. The capacitor's metallized polypropylene film may absorb moisture, leading to reduced performance and reliability.
  • The shelf life of MKP1847H61025JP4 is typically 2 years from the date of manufacture, as long as it's stored in its original packaging and under recommended storage conditions (temperature: 20°C to 30°C, humidity: 60% to 90%).
  • Yes, MKP1847H61025JP4 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU-based applications.
