MKP1848C62010JP5 - Vishay

Description: Vishay 20μF Polypropylene Capacitor PP 1kV dc ±5% Tolerance Through Hole MKP1848C Series

Download MKP1848C62010JP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C62010JP5 - Vishay - PCB symbol
click to zoom
PCB Footprints

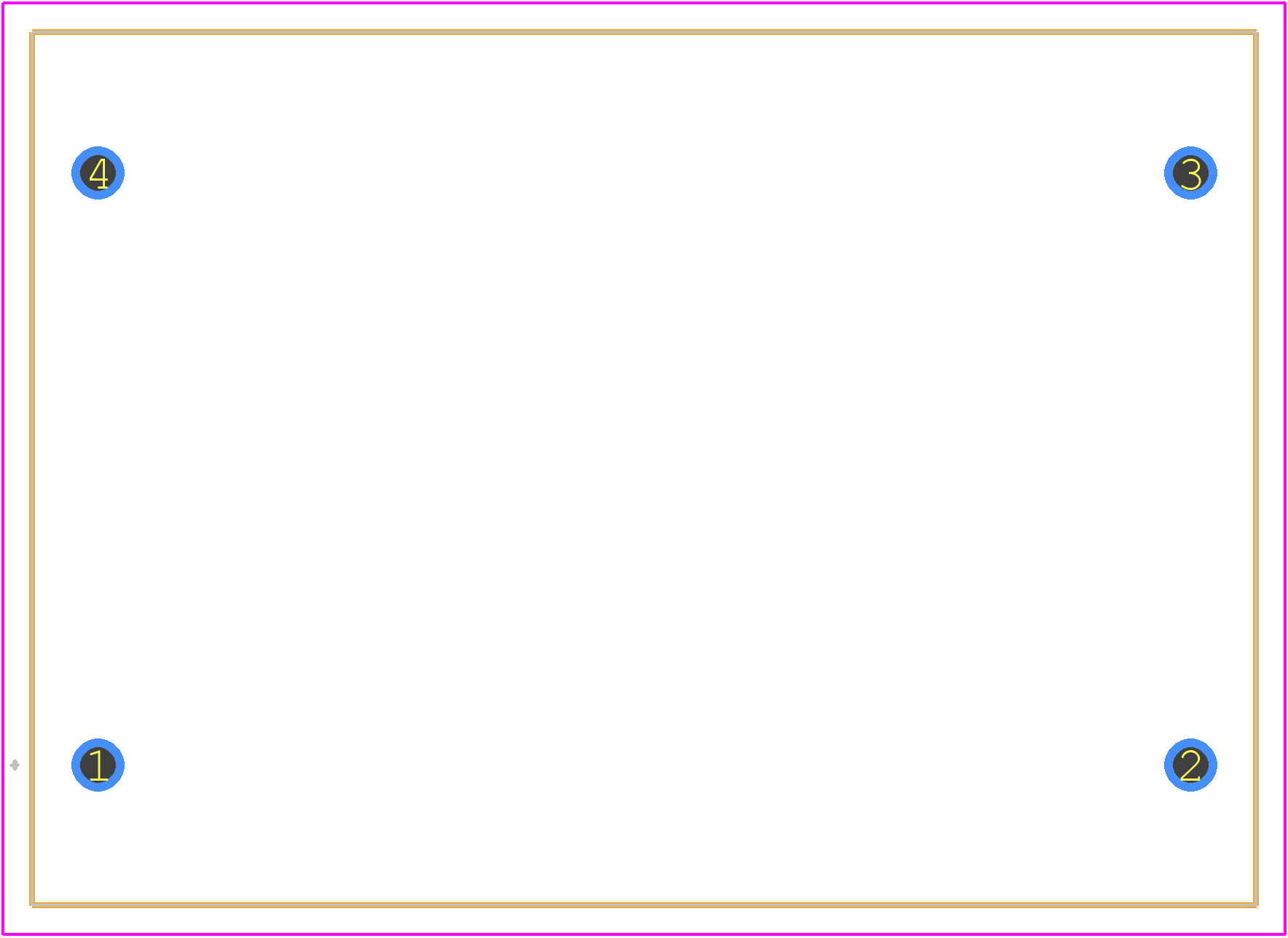

MKP1848C62010JP5 - Vishay PCB footprint - Other - Other - MKP1848C62010JP5-2
click to zoom
3D Models
MKP1848C62010JP5 - Vishay - 3D model - Other - MKP1848C62010JP5-2
click to zoom

MKP1848C62010JP5 Details

  • Manufacturer Part Number:

    MKP1848C62010JP5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    5 mΩ

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    15000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

MKP1848C62010JP5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C62010JP5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C62010JP5 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKP1848C62010JP5 can be used in DC-DC converter circuits due to its low ESR, high ripple current capability, and high reliability.
  • Yes, the MKP1848C62010JP5 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The shelf life of the MKP1848C62010JP5 capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a dry, cool place.
