MKP1848C65050JP5 - Vishay

Description: Vishay 50μF Polypropylene Capacitor PP 500V dc ±5% Tolerance Through Hole MKP1848C Series

Download MKP1848C65050JP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C65050JP5 - Vishay - PCB symbol
click to zoom
PCB Footprints

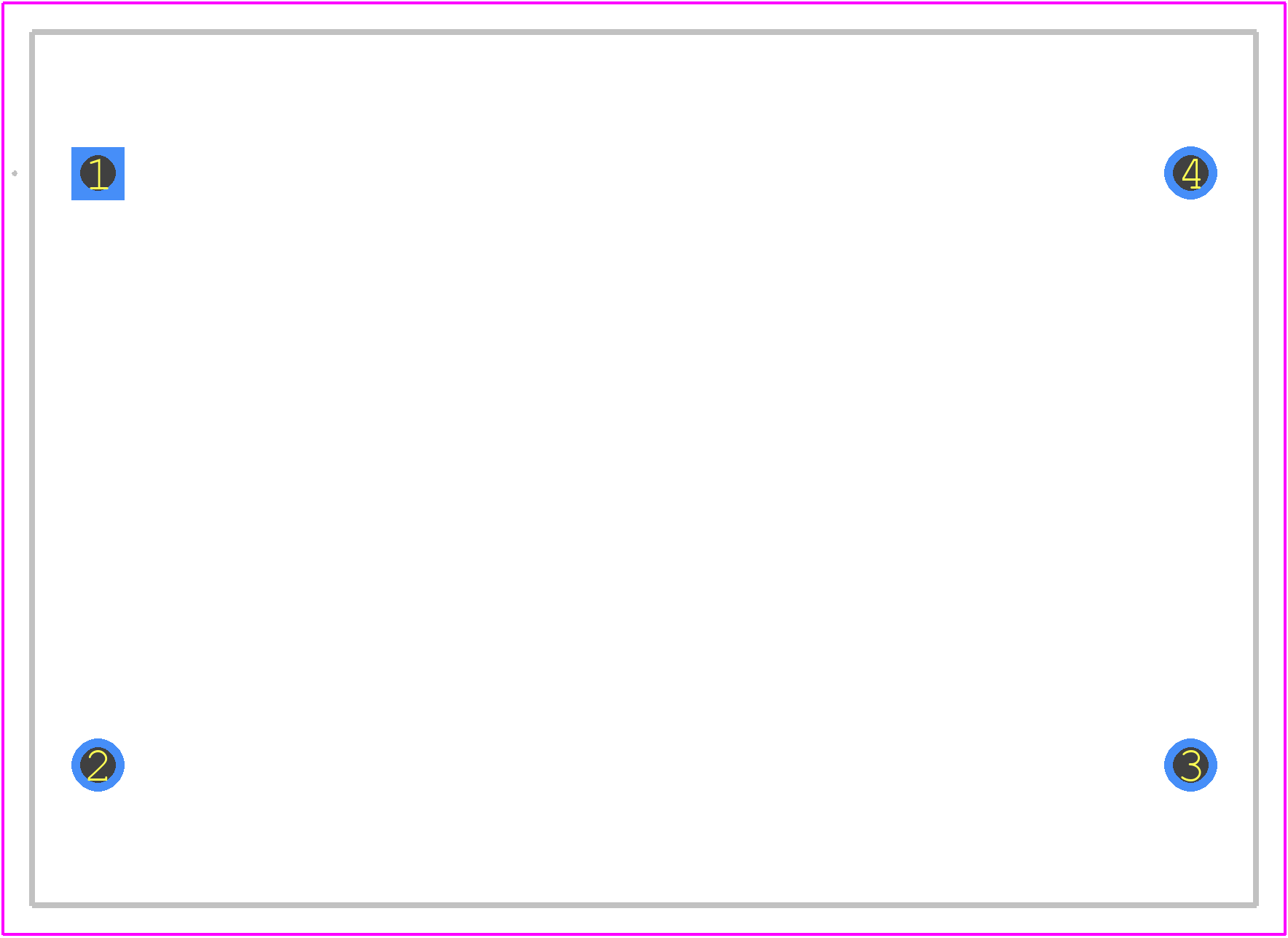

MKP1848C65050JP5 - Vishay PCB footprint - Other - Other - MKP1848C65050JP5-1
click to zoom
3D Models
MKP1848C65050JP5 - Vishay - 3D model - Other - MKP1848C65050JP5-1
click to zoom

MKP1848C65050JP5 Details

  • Manufacturer Part Number:

    MKP1848C65050JP5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    3 mΩ

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    17000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

MKP1848C65050JP5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C65050JP5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C65050JP5 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for MKP1848C65050JP5 can be found in the Vishay Intertechnologies application note AN1033, which provides guidance on derating the capacitor's voltage and current ratings based on operating temperature and other factors.
  • Yes, the MKP1848C65050JP5 capacitor is designed to withstand high-vibration environments, with a vibration resistance of 10 Hz to 2000 Hz, 10 G peak acceleration.
  • The ESR of MKP1848C65050JP5 is approximately 12.5 mohms at 100 kHz, which is relatively low and suitable for high-frequency applications.
