MKP1848S61070JP4B - Vishay

Description: 10 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial , 8 mOhms , -40°C ~ 105°C

Download MKP1848S61070JP4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S61070JP4B - Vishay - PCB symbol
click to zoom
PCB Footprints

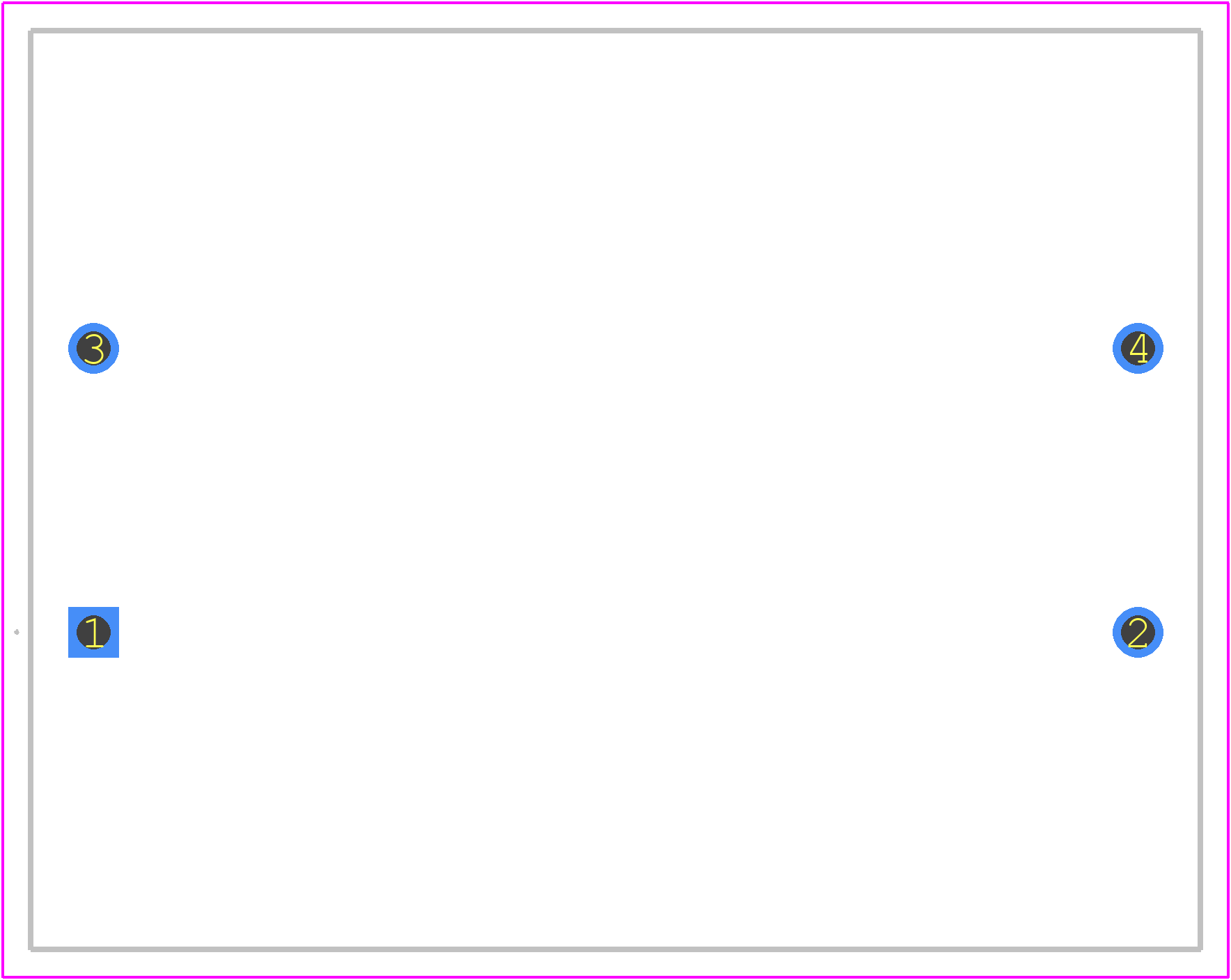

MKP1848S61070JP4B - Vishay PCB footprint - Other - Other - MKP1848S61070JP4B-1
click to zoom
3D Models
MKP1848S61070JP4B - Vishay - 3D model - Other - MKP1848S61070JP4B-1
click to zoom

MKP1848S61070JP4B Details

  • Manufacturer Part Number:

    MKP1848S61070JP4B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    15 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    33 mm

MKP1848S61070JP4B Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848S61070JP4B is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the MKP1848S61070JP4B is a metallized polypropylene film capacitor, which is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonance frequency.
  • The MKP1848S61070JP4B has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow proper storage and handling procedures to prevent moisture absorption.
  • The maximum ripple current rating for the MKP1848S61070JP4B is 1.85 Arms at 100 kHz and 85°C.
  • Yes, the MKP1848S61070JP4B is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and hazardous substance-free components.
