MKP1848S62050JY2B - Vishay

Description: Film Capacitors 20uF 500volt 5% 2pin 52.5mm LS

Download MKP1848S62050JY2B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S62050JY2B - Vishay - PCB symbol
click to zoom
PCB Footprints

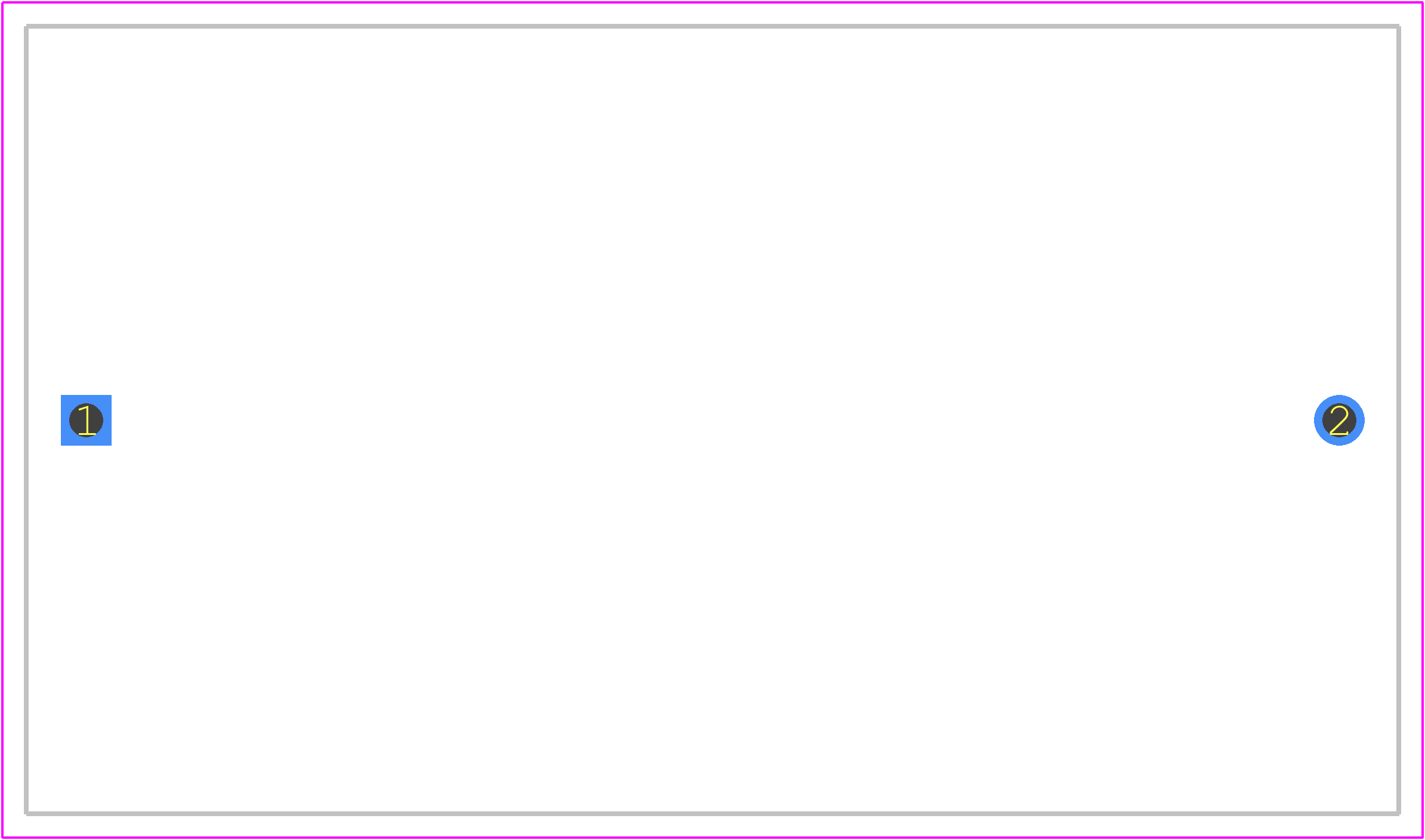

MKP1848S62050JY2B - Vishay PCB footprint - Other - Other - MKP1848S62050JY2B-2
click to zoom

MKP1848S62050JY2B Details

  • Manufacturer Part Number:

    MKP1848S62050JY2B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    15 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    52.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    33 mm
