MKP1848S65050JY5C - Vishay

Description: 50 µF Film Capacitor 500V Polypropylene (PP), Metallized Radial

Download MKP1848S65050JY5C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S65050JY5C - Vishay - PCB symbol
click to zoom
PCB Footprints

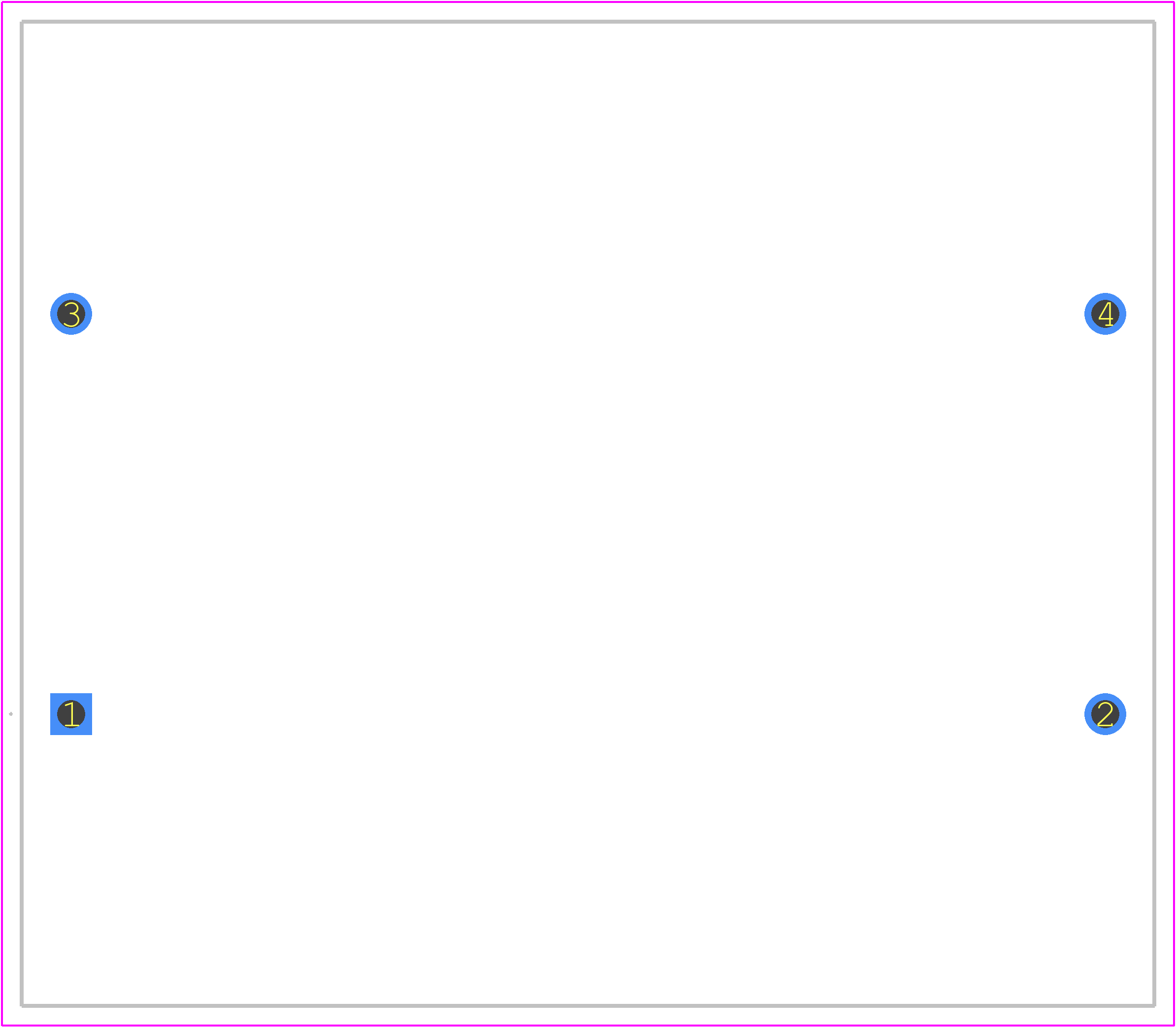

MKP1848S65050JY5C - Vishay PCB footprint - Other - Other - MKP1848S65050JY5C-1
click to zoom
3D Models
MKP1848S65050JY5C - Vishay - 3D model - Other - MKP1848S65050JY5C-1
click to zoom

MKP1848S65050JY5C Details

  • Manufacturer Part Number:

    MKP1848S65050JY5C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    18 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    50 mm

MKP1848S65050JY5C Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848S65050JY5C is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848S65050JY5C capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the MKP1848S65050JY5C capacitor can be found in the Vishay Intertechnologies application note AN1033, which provides guidance on derating the capacitor's voltage and current ratings based on operating temperature and other factors.
  • Yes, the MKP1848S65050JY5C capacitor is designed to withstand high-vibration environments, with a vibration test rating of 10-2000 Hz, 10 G peak acceleration, and 3 hours per axis.
  • The ESR of the MKP1848S65050JY5C capacitor is approximately 50 mΩ at 100 kHz and 25°C (77°F).
