MKP1848S71050JY6F - Vishay

Description: Film Capacitors MKP, 500Vdc, 100uF, 52.5 pitch, P2= 20.3mm P2, 6 pins

Download MKP1848S71050JY6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S71050JY6F - Vishay - PCB symbol
click to zoom
PCB Footprints

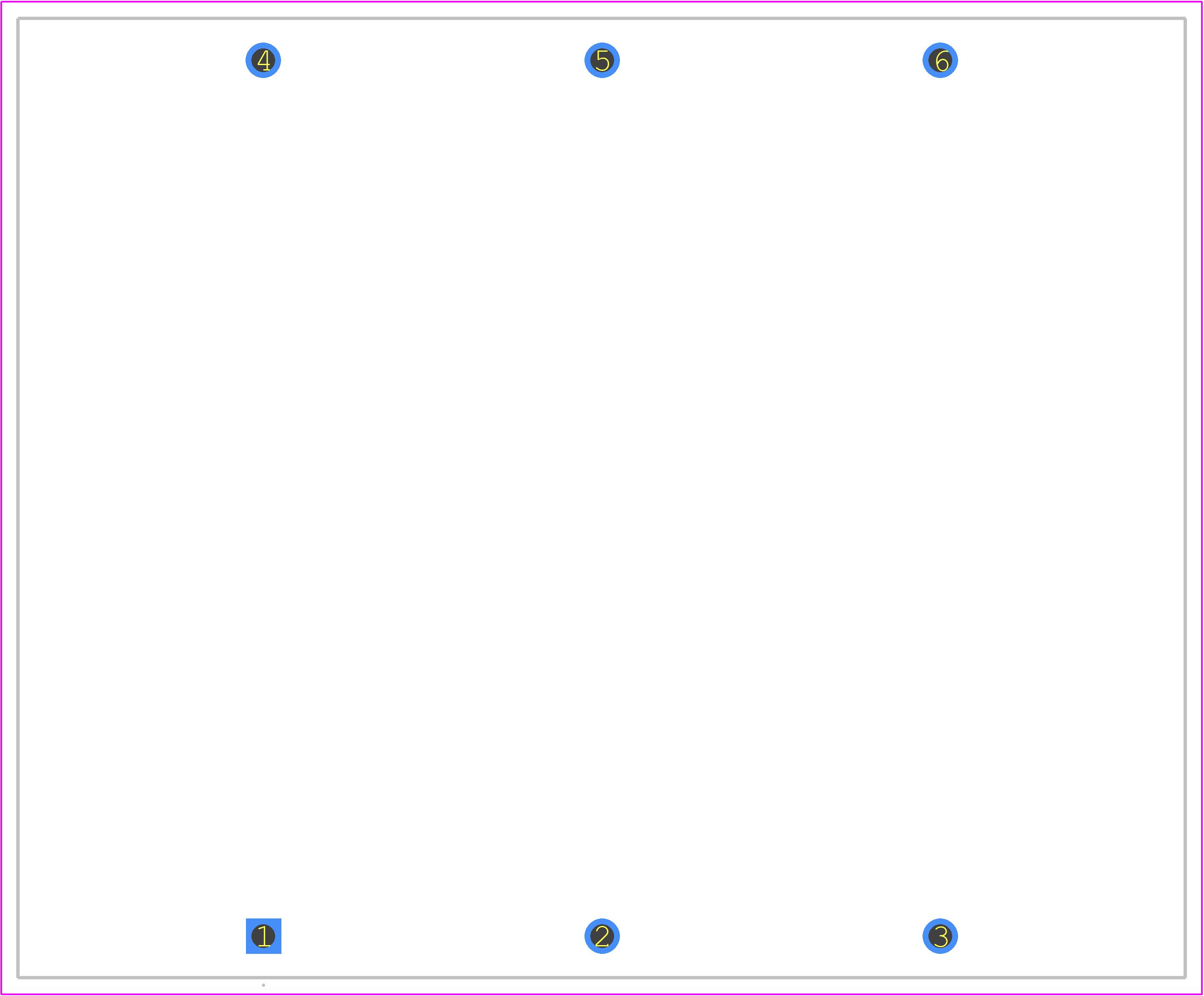

MKP1848S71050JY6F - Vishay PCB footprint - Other - Other - 70 x 57.5 x 24 mm
click to zoom
3D Models
MKP1848S71050JY6F - Vishay - 3D model - Other - 70 x 57.5 x 24 mm
click to zoom

MKP1848S71050JY6F Details

  • Manufacturer Part Number:

    MKP1848S71050JY6F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    100 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    24 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    70 mm

MKP1848S71050JY6F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848S71050JY6F is 260°C (500°F) for 10 seconds, with a peak temperature of 265°C (509°F) for 5 seconds.
  • Yes, the MKP1848S71050JY6F capacitor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The maximum operating temperature range for MKP1848S71050JY6F is -40°C to 125°C (-40°F to 257°F).
  • Yes, the MKP1848S71050JY6F capacitor is designed to withstand high-vibration environments, with a vibration resistance of 10 Hz to 2000 Hz, 10 G peak acceleration.
  • The equivalent series resistance (ESR) of the MKP1848S71050JY6F capacitor is 50 mΩ maximum at 100 kHz and 25°C (77°F).
