MKV10Z128VFM7 - NXP

Description: ARM® Cortex®-M0+ Kinetis KV Microcontroller IC 32-Bit Single-Core 75MHz 128KB (128K x 8) FLASH 32-HVQFN (5x5)

Download MKV10Z128VFM7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

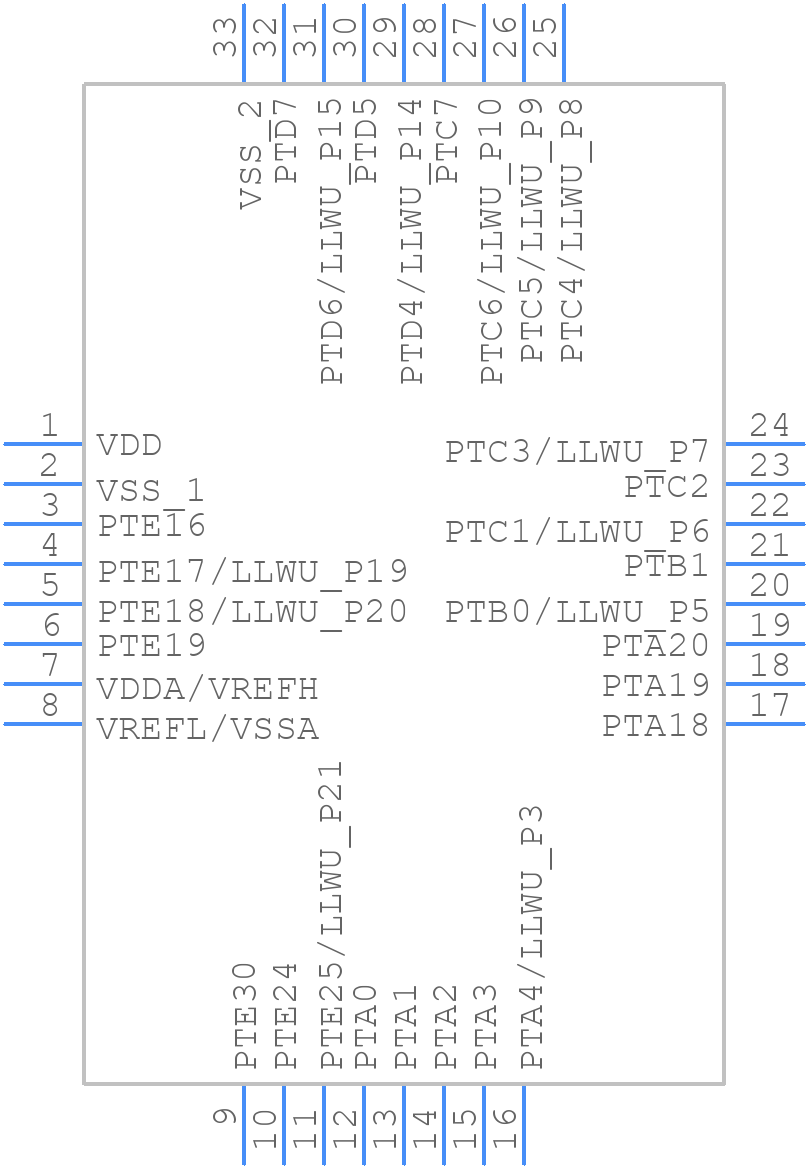

MKV10Z128VFM7 - NXP - PCB symbol
click to zoom
PCB Footprints
MKV10Z128VFM7 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32 (SOT617-17)
click to zoom
3D Models
MKV10Z128VFM7 - NXP - 3D model - Quad Flat No-Lead - HVQFN32 (SOT617-17)
click to zoom

MKV10Z128VFM7 Details

  • Manufacturer Part Number:

    MKV10Z128VFM7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Has ADC:

    YES

  • Clock Frequency-Max:

    50 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    28

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Speed:

    75 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MKV10Z128VFM7 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the MKV10Z128VFM7 is 100 MHz.
  • The clock settings on the MKV10Z128VFM7 can be configured using the Clock Management Unit (CMU) module. The CMU module allows you to select the clock source, configure the clock frequency, and enable/disable clock outputs.
  • The FlexBus interface on the MKV10Z128VFM7 is a 32-bit parallel bus that allows the microcontroller to interface with external devices such as memory, peripherals, and other microcontrollers.
  • The DMA controller on the MKV10Z128VFM7 can be used to transfer data between peripherals and memory without involving the CPU. The DMA controller can be configured using the DMA registers and the DMA request signals from the peripherals.
  • The Low Power Modes on the MKV10Z128VFM7 are used to reduce power consumption when the microcontroller is not performing any critical tasks. The microcontroller can enter different low power modes such as Wait, Stop, and VLPR (Very Low Power Run) modes.
