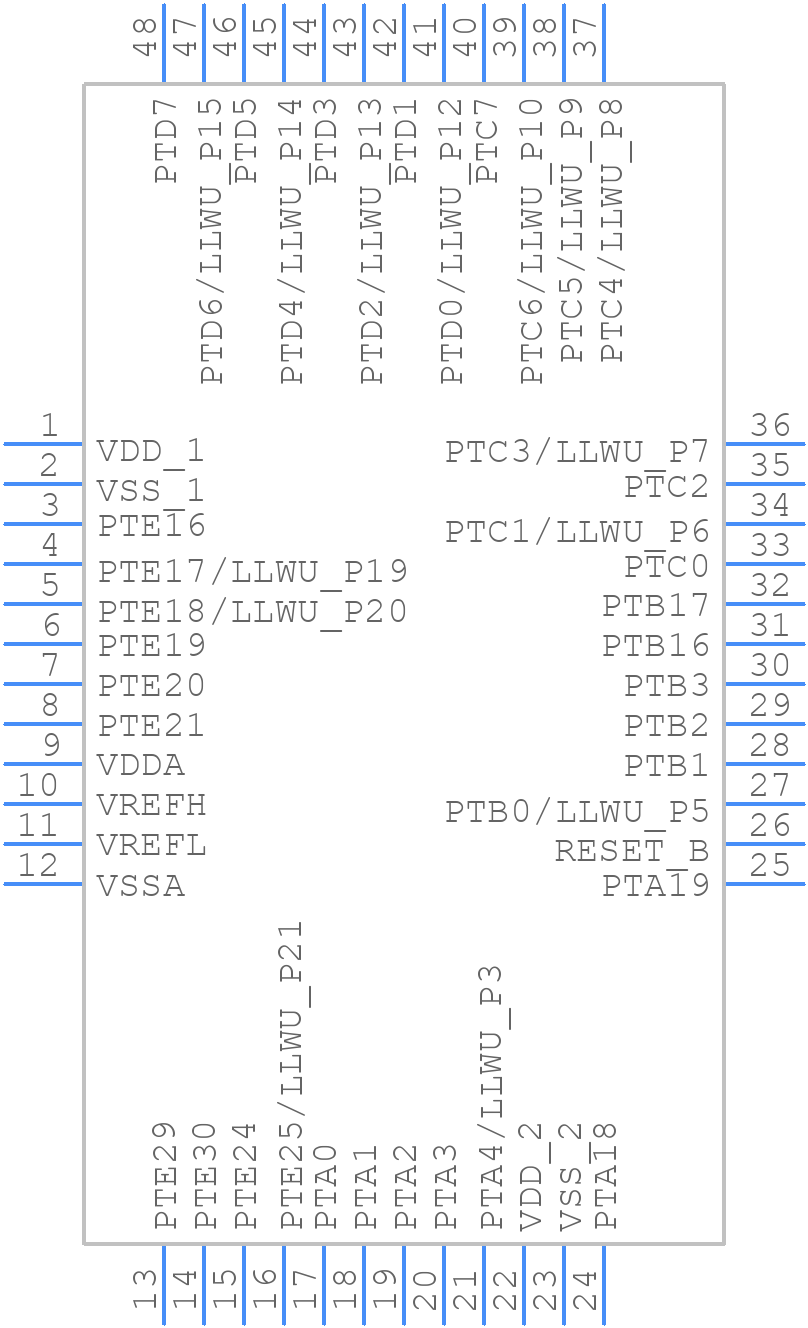

MKV44F128VLF16 - NXP

MKV44F128VLF16 Details

• Manufacturer Part Number:

  MKV44F128VLF16

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LQFP-48

• Country Of Origin:

  Mainland China, Malaysia

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M4

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  16

• Number of I/O Lines:

  39

• Number of Serial I/Os:

  4

• Number of Terminals:

  48

• Number of Timers:

  5

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  24576

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  168 MHz

• Supply Current-Max:

  53.2 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
