MKV44F64VLF16 - NXP

Description: ARM Microcontrollers - MCU MKV44F64VLF16/LQFP48///TRAY MULTIPLE DP BAKEABLE

Download MKV44F64VLF16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

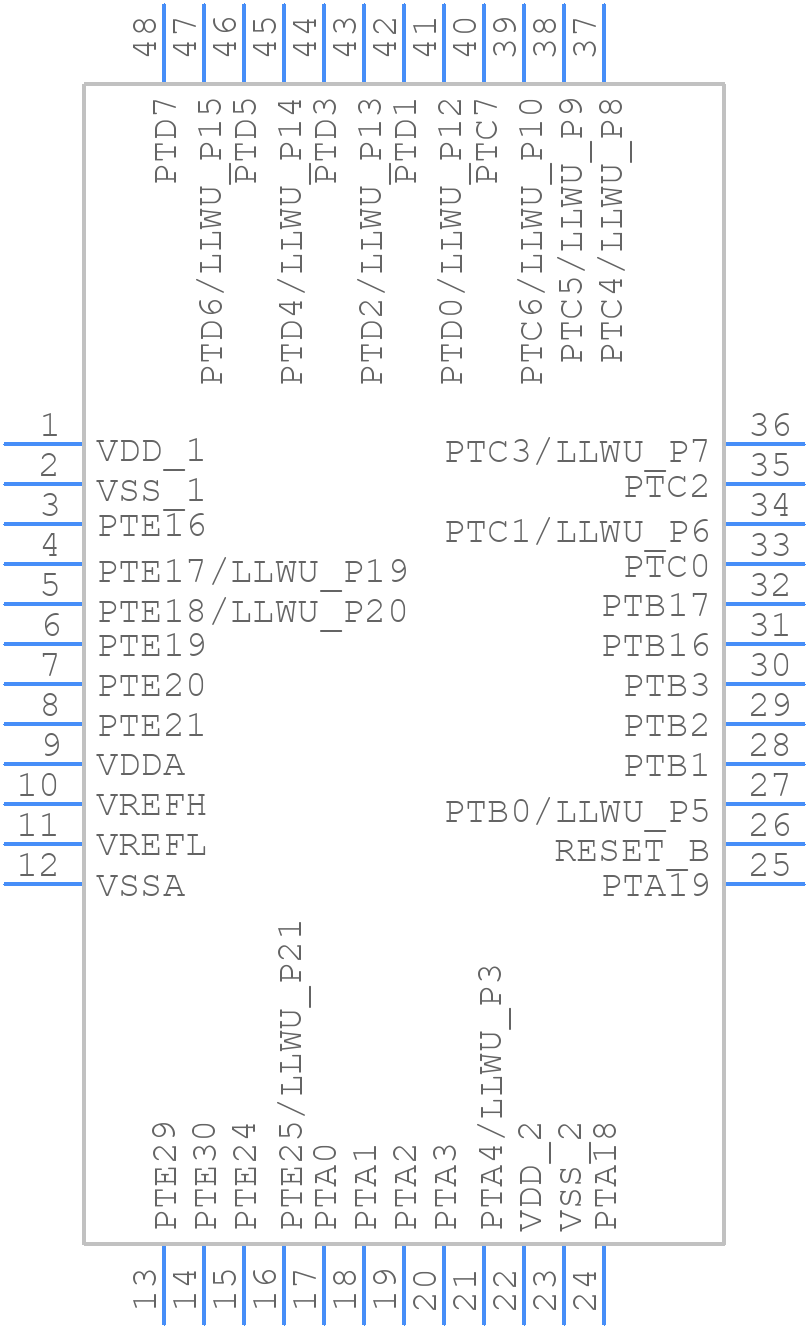

MKV44F64VLF16 - NXP - PCB symbol
click to zoom
PCB Footprints
MKV44F64VLF16 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 48 LEAD 0.50 PITCH
click to zoom
3D Models
MKV44F64VLF16 - NXP - 3D model - Quad Flat Packages - LQFP 48 LEAD 0.50 PITCH
click to zoom

MKV44F64VLF16 Details

  • Manufacturer Part Number:

    MKV44F64VLF16

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M4

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    16

  • Number of I/O Lines:

    39

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    48

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    16384

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    168 MHz

  • Supply Current-Max:

    53.2 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MKV44F64VLF16 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MKV44F64VLF16 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 150°C.
  • To configure the clock source, you need to select the appropriate clock mode using the CLKMODE pins. You can choose between an external clock source, an internal clock source, or a clock source from the FLL (Frequency-Locked Loop). Refer to the datasheet for specific pin configurations and clock mode settings.
  • The VLL (Voltage Low Logic) and VHH (Voltage High High) power pins are used to power the internal logic and I/O buffers, respectively. VLL is typically connected to a 1.2V to 1.8V power supply, while VHH is connected to a 2.5V to 3.6V power supply. This dual-power architecture helps reduce power consumption and improve performance.
  • To implement a reliable reset mechanism, you can use the RESET pin, which is an active-low input. You can connect this pin to a reset generator circuit or a power-on reset (POR) circuit. Additionally, you can use the internal POR circuit, which is enabled by default, to reset the device during power-up.
  • When designing a PCB with the MKV44F64VLF16, it's essential to follow good layout practices, such as keeping signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the power supply pins are properly decoupled, and the device is placed in a thermally efficient location to prevent overheating.
