MKW36Z512VFP4 - NXP

Description: RF System on a Chip - SoC Kinetis W 32-bit MCU, Arm Cortex-M0+, 512KB Flash, 64KB SRAM, 8KB EEPROM, 48MHz, BLE, CAN, 40QFN

Download MKW36Z512VFP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

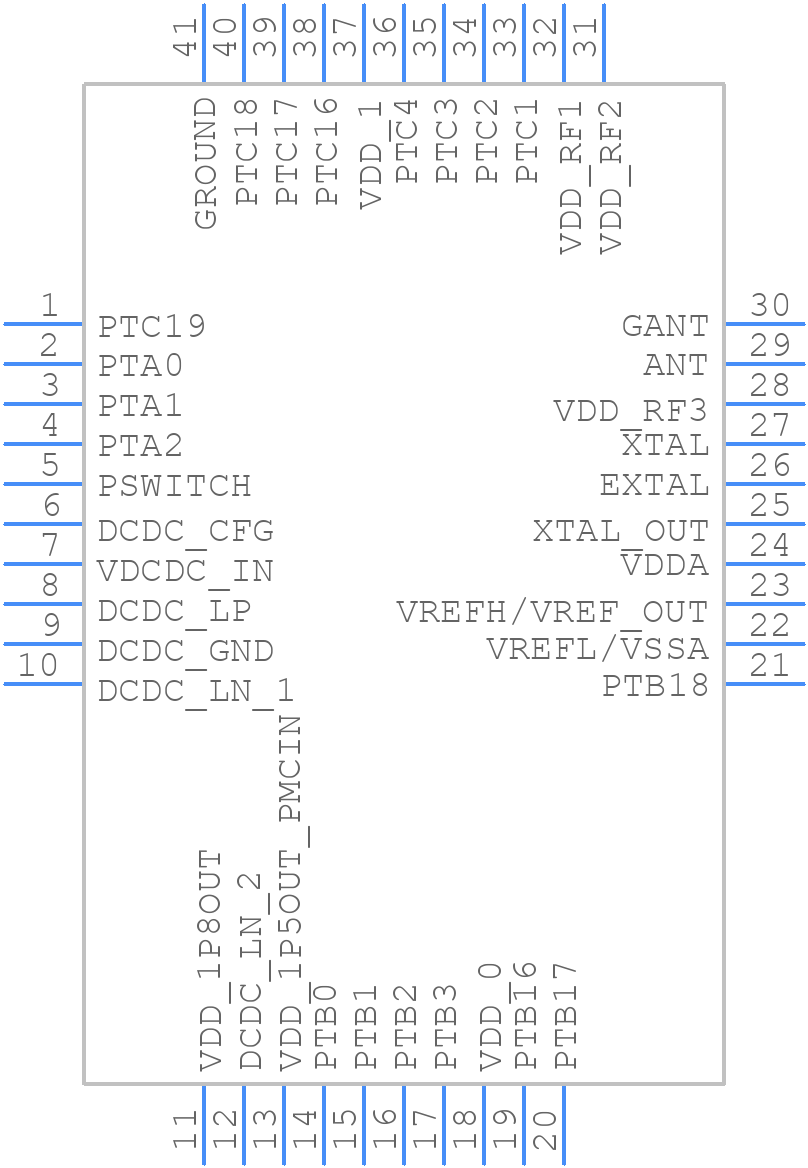

MKW36Z512VFP4 - NXP - PCB symbol
click to zoom
PCB Footprints
MKW36Z512VFP4 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Hvqfn 40 pin
click to zoom
3D Models
MKW36Z512VFP4 - NXP - 3D model - Quad Flat No-Lead - Hvqfn 40 pin
click to zoom

MKW36Z512VFP4 Details

  • Manufacturer Part Number:

    MKW36Z512VFP4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-09-05

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MKW36Z512VFP4 Frequently Asked Questions (FAQs)

  • The MKW36Z512VFP4 can operate from -40°C to 105°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • The clock source can be configured using the Clock Manager (CLKMGR) module. You can choose from internal oscillators, external crystals, or external clock sources. Refer to the Clock Manager chapter in the reference manual for detailed configuration steps.
  • The maximum current consumption of the MKW36Z512VFP4 depends on the operating mode and frequency. In active mode, the maximum current consumption is around 20mA at 48MHz. In low-power modes, the current consumption can be as low as 1.5mA. Refer to the datasheet for detailed power consumption specifications.
  • The MKW36Z512VFP4 has a built-in Secure Boot feature that ensures the authenticity and integrity of the firmware. To implement secure boot, you need to generate a secure boot key, sign your firmware image, and configure the Secure Boot module. Refer to the Secure Boot chapter in the reference manual for detailed steps.
  • Yes, the MKW36Z512VFP4 has a built-in BLE 5.0 transceiver and supports BLE 5.0, 4.2, and 4.1 protocols. You can use the NXP BLE stack or third-party BLE stacks to develop BLE applications.
