Description:The MKZI20 series features multiple functions, including undervoltage, overcurrent, overvoltage, short-circuit protection, remote on/off, and output voltage adjustment, and it has obtained the A-level certification for conducted EMI per EN 55032/11. Additionally, the MKZI20 series has passed vibration and shock/bump tests EN 61373, cooling, dry, and damp heat tests IEC/EN 60068-2-1,2,30, complies with the railway EMC standard EN 50121-3-2, and has obtained railway certification EN 50155(IEC 60571) as well a
OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE
Ripple Voltage (Main Out):
0.017675 Vrms
Screening Level:
EN 50155, EN 45545-2, IEC/EN/UL 62368-1
Seated Height-Max:
11.75 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
20 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm
MKZI20-110S05 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output capacitors close to the converter, using a solid ground plane, and minimizing the loop area of the input and output traces. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout.
To ensure EMC, follow proper PCB design and layout guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. Also, ensure that the converter is operated within the specified input voltage range and that the output is properly decoupled.
The derating curve is not explicitly provided in the datasheet, but it can be obtained from Minmax Technology Co Ltd or a authorized distributor. The derating curve shows the reduction in output power as the ambient temperature increases. Engineers should consult the derating curve to ensure the converter operates within the specified temperature range and output power requirements.
Yes, the MKZI20-110S05 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper operation and synchronization. Engineers should consult with Minmax Technology Co Ltd or a qualified design expert to ensure a reliable and efficient redundant or parallel configuration.
The reliability and MTBF specifications are not explicitly provided in the datasheet, but they can be obtained from Minmax Technology Co Ltd or a authorized distributor. Engineers should consult the reliability and MTBF data to ensure the converter meets the required reliability standards for their application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MKZI20-110S05 Overview

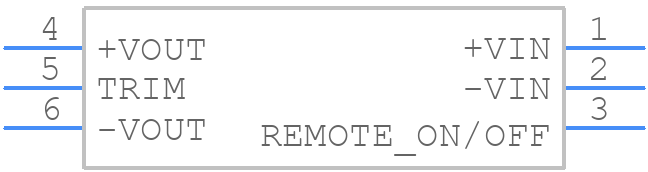

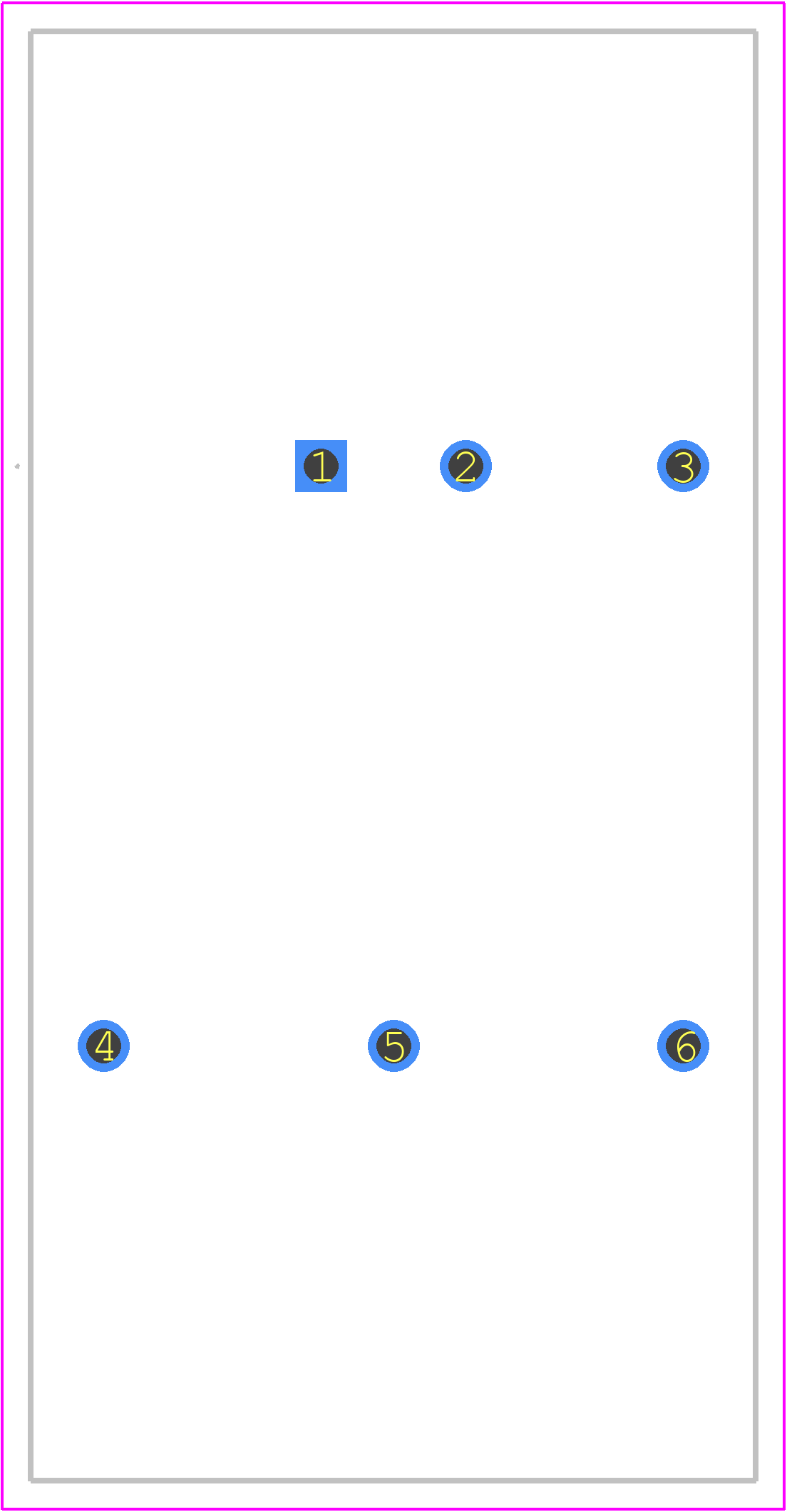

Use the download button to access the MKZI20-110S05 schematic symbol, PCB footprint, and 3D model.
