MKZI40-110D12-HS7 footprint, schematic symbol and 3D model by Minmax

MKZI40-110D12-HS7 - Minmax

Description: The MKZI40 series from MINMAX is a next-generation 40W railway-certified isolated DC-DC power converter. It features an ultra-wide input voltage range of 36-160VDC, making it suitable for railway DC systems. The series offers seven models providing precise output voltages of 5/12/15/24/54/±12/±15VDC. With a compact 2"x1" size and full encapsulation packaging, the MKZI40 series is designed to resist external environmental interference, specifically designed for battery-powered railway systems and harsh envir

Download MKZI40-110D12-HS7 Model

Schematic
symbols

PCB
footprints

3D
models

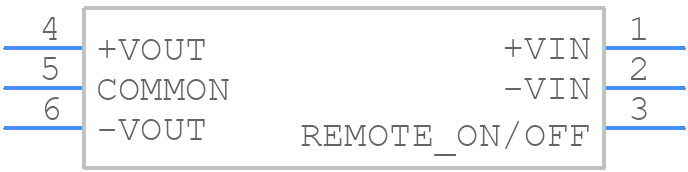

Symbol

click to zoom

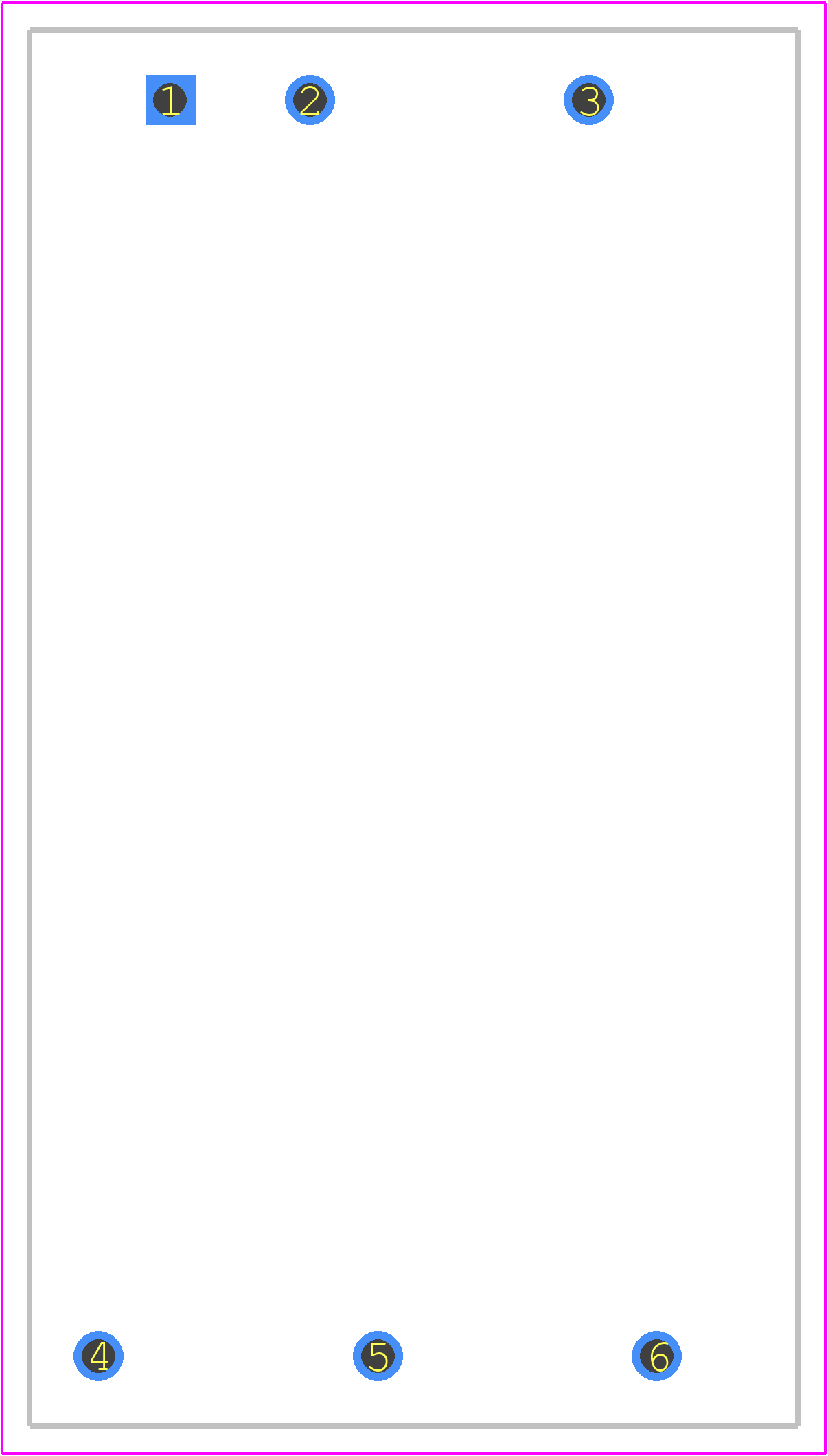

PCB Footprints

MKZI40-110D12-HS7 - Minmax PCB footprint - Other - Other - DIP-6-HS7

click to zoom

3D Models

MKZI40-110D12-HS7 - Minmax - 3D model - Other - DIP-6-HS7

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MKZI40-110D12-HS7
Part Number MKZI40-110D12-HS7
Manufacturer Minmax
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - DIP-6-HS7
Released Date Apr 3, 2024
Last Modified Date Jul 24, 2024 3:15 PM UTC
Pinout / Pin List Click Here (Member Only)

MKZI40-110D12-HS7 Details

Manufacturer Part Number:
MKZI40-110D12-HS7
Manufacturer:
Minmax Technology Co Ltd

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MKZI40-110D12-HS7 Overview

Use the download button to access the MKZI40-110D12-HS7 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MKZI4, or try a keyword search, such as Power Supply Modules
