A good PCB layout for the ML4800IS involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a stable voltage source and decouple the input and output pins with capacitors to minimize noise and oscillations.
The ML4800IS is rated for operation from -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
Yes, the ML4800IS is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is designed to withstand the harsh conditions of automotive environments.
To troubleshoot issues with the ML4800IS, start by checking the PCB layout and ensuring that the device is properly biased. Use an oscilloscope to measure the input and output waveforms and look for signs of oscillation or instability. Check the datasheet for recommended troubleshooting procedures and consult with onsemi's technical support team if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ML4800IS Overview

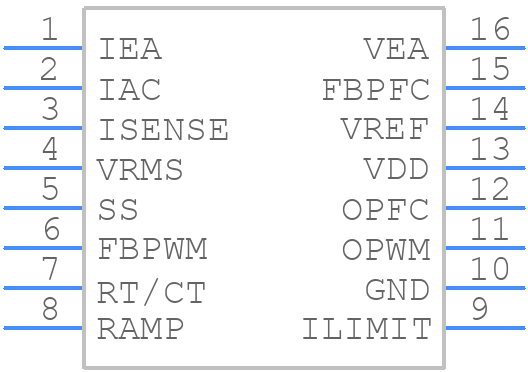

Use the download button to access the ML4800IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ML480,
or try a keyword search, such as Switching Regulator or Controllers
