- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ML51FB9AE
- Part Number ML51FB9AE
- Manufacturer Nuvoton
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TSSOP20
- Released Date Apr 25, 2023
- Last Modified Date Apr 25, 2023 4:56 AM UTC
- Pinout / Pin List Click Here (Member Only)
ML51FB9AE Details
-
Manufacturer Part Number:
ML51FB9AE
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Date Of Intro:
2019-01-08
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
8
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
ML51FB9AE Frequently Asked Questions (FAQs)
-
The recommended oscillator crystal frequency for the ML51FB9AE is 12 MHz or 24 MHz, depending on the application and clock speed requirements.
-
The BOD on the ML51FB9AE can be configured through the BODCR register. The BOD voltage level can be set to 2.5V, 2.7V, 3.0V, or 3.3V, and the BOD reset delay can be set to 2ms, 4ms, or 6ms.
-
The maximum current that can be sourced or sunk by the GPIO pins on the ML51FB9AE is 20mA per pin, with a total current limit of 100mA for all GPIO pins combined.
-
The UART on the ML51FB9AE can be configured through the UART control registers. The UART baud rate can be set to a range of values from 300bps to 115.2kbps, and the UART can be operated in asynchronous or synchronous mode.
-
The power consumption of the ML51FB9AE in sleep mode depends on the sleep mode configuration and the clock frequency. In general, the power consumption in sleep mode can be as low as 10uA.
Trust Checks
Community Provided
System Verified
Community Approved
ML51FB9AE Overview

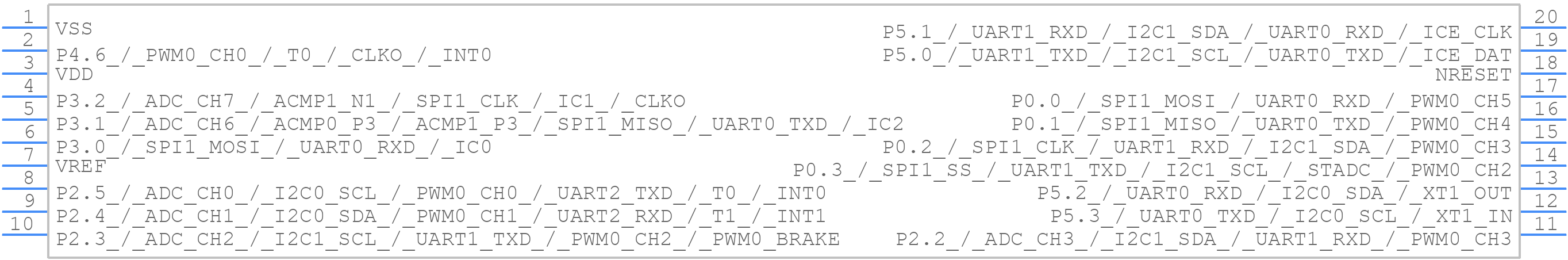

Use the download button to access the ML51FB9AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ML51F,
or try a keyword search, such as Microcontrollers
