- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ML51PB9AE
- Part Number ML51PB9AE
- Manufacturer Nuvoton
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - LQFP 32-pin (7.0 x 7.0 x 1.4 mm)
- Released Date Aug 18, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ML51PB9AE Details
-
Manufacturer Part Number:
ML51PB9AE
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Date Of Intro:
2019-01-08
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
8
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
ML51PB9AE Frequently Asked Questions (FAQs)
-
The recommended oscillator crystal frequency for the ML51PB9AE is 12 MHz or 24 MHz, depending on the application requirements.
-
To configure the ML51PB9AE for low power consumption, set the Power Down Mode (PD) bit in the Power Control Register (PCR) to 1, and adjust the clock frequency and voltage regulator settings according to the application requirements.
-
The maximum operating temperature range for the ML51PB9AE is -40°C to 85°C, but it can be extended to -40°C to 105°C with some limitations on the clock frequency and voltage regulator settings.
-
The ML51PB9AE has a built-in watchdog timer that can be enabled by setting the Watchdog Timer Enable (WDE) bit in the Watchdog Timer Control Register (WTCSR). The watchdog timer can be configured to reset the device or generate an interrupt when it times out.
-
The maximum current consumption of the ML51PB9AE depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the typical current consumption is around 10 mA at 5V and 12 MHz, but it can be higher or lower depending on the specific application.
Trust Checks
Community Provided
System Verified
Community Approved
ML51PB9AE Overview

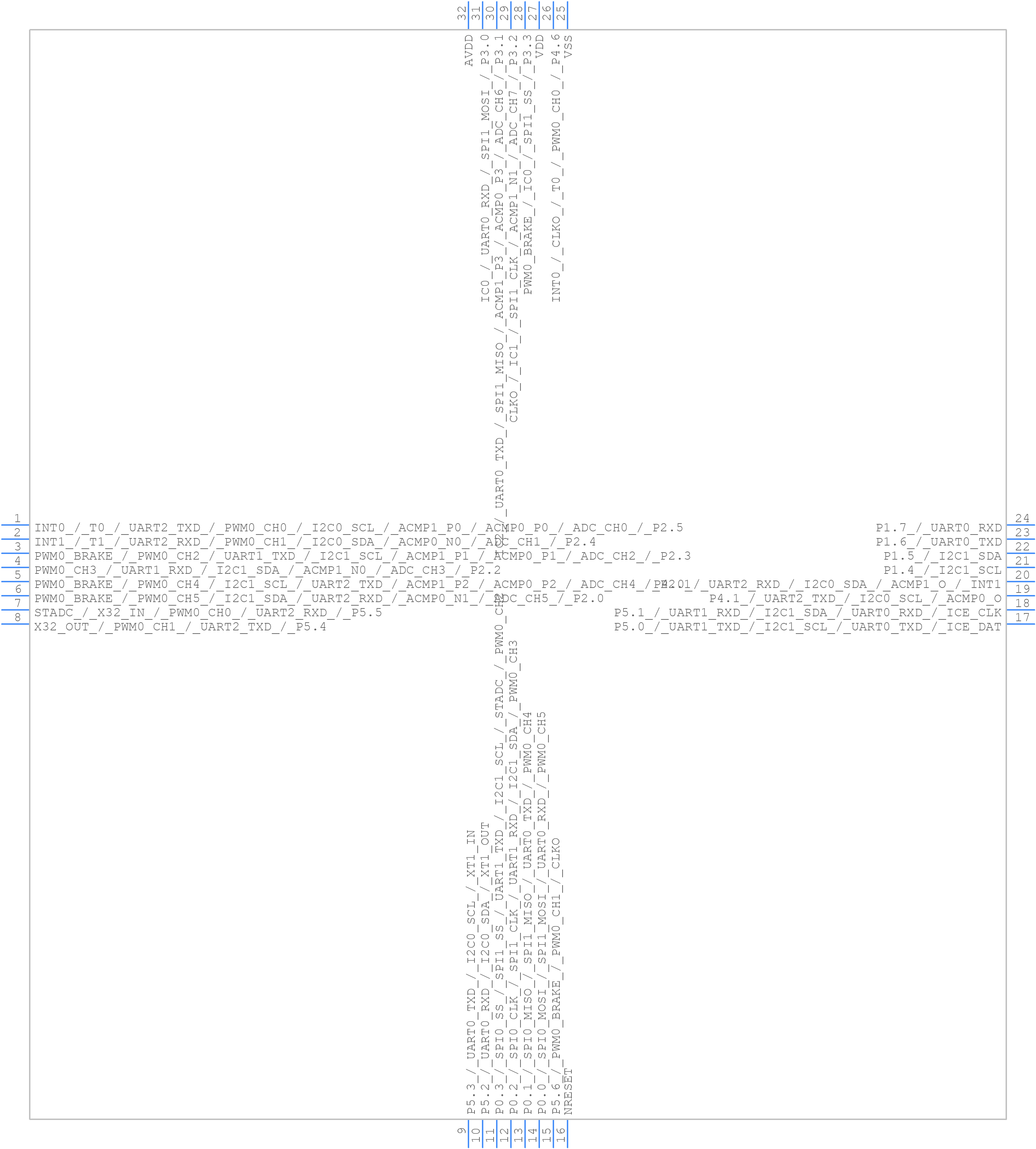

Use the download button to access the ML51PB9AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ML51P,
or try a keyword search, such as Microcontrollers
