MLE-118-01-G-DV-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

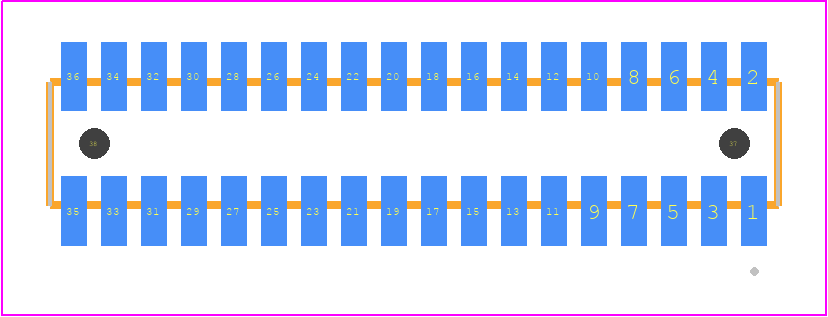

PCB Footprints

MLE-118-01-G-DV-A - SAMTEC PCB footprint - Other - Other - MLE-118-01-G-DV-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MLE-118-01-G-DV-A
Part Number MLE-118-01-G-DV-A
Manufacturer SAMTEC
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - MLE-118-01-G-DV-A
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MLE-118-01-G-DV-A Details

Manufacturer Part Number:
MLE-118-01-G-DV-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
10
Board Mounting Option:
SOLDER HOLDING POSTS
Body Breadth:
0.121 inch
Body Depth:
0.123 inch
Body Length:
0.702 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.039 inch
Mating Contact Row Spacing:
0.039 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.175 mm
Plating Thickness:
10u inch
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
36

MLE-118-01-G-DV-A Frequently Asked Questions (FAQs)

The recommended mating sequence for the MLE-118-01-G-DV-A connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the MLE-118-01-G-DV-A connector is designed to withstand high-vibration environments. It has a ruggedized design and is tested to meet the requirements of various industry standards, including IEC 61373 and EN 61373.
The MLE-118-01-G-DV-A connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the MLE-118-01-G-DV-A connector is designed to be compatible with automated assembly processes, including pick-and-place and robotic assembly. It has a compact design and is available in tape-and-reel packaging for easy integration into automated assembly lines.
The typical lead time for delivery of the MLE-118-01-G-DV-A connector varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders, and expedited shipping options are available for urgent requirements.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MLE-118-01-G-DV-A Overview

Use the download button to access the MLE-118-01-G-DV-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MLE-1, or try a keyword search, such as Headers and Edge Type Connectors
