MLX90395KLW-BBA-001-SP - Melexis

Description: Board Mount Hall Effect / Magnetic Sensors Magnetometer Node

Download MLX90395KLW-BBA-001-SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

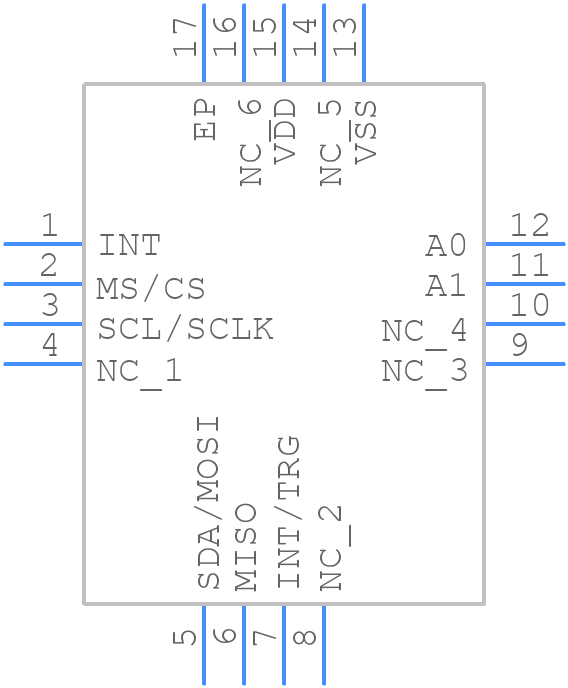

MLX90395KLW-BBA-001-SP - Melexis - PCB symbol
click to zoom
PCB Footprints
MLX90395KLW-BBA-001-SP - Melexis PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-16-1
click to zoom
3D Models
MLX90395KLW-BBA-001-SP - Melexis - 3D model - Quad Flat No-Lead - QFN-16-1
click to zoom

MLX90395KLW-BBA-001-SP Details

  • Manufacturer Part Number:

    MLX90395KLW-BBA-001-SP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    7

  • Additional Feature:

    AEC-Q100

  • Body Breadth:

    3 mm

  • Body Height:

    0.875 mm

  • Body Length or Diameter:

    3 mm

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C; SPI

  • Output Range:

    0.066-3.234V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.6 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MLX90395KLW-BBA-001-SP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Calibration involves applying a known magnetic field and adjusting the internal offset and sensitivity registers. Use the MLX90395's built-in self-test feature to determine the optimal calibration values. Consult the application note AN330701 for detailed calibration procedures.
  • The MLX90395KLW-BBA-001-SP is rated for operation from -40°C to 125°C. However, the accuracy and sensitivity of the device may degrade at extreme temperatures. Consult the datasheet for temperature-dependent specifications.
  • The MLX90395KLW-BBA-001-SP is not certified for safety-critical applications. However, it can be used in safety-related applications with proper design, testing, and validation. Consult the datasheet and relevant safety standards (e.g., ISO 26262) for guidance.
  • The MLX90395KLW-BBA-001-SP communicates via a standard SPI interface. Use a microcontroller with an SPI peripheral and configure it to operate at a clock frequency of up to 10 MHz. Consult the datasheet for SPI timing diagrams and protocol details.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MLX90395KLW-BBA-001-SP Overview

Use the download button to access the MLX90395KLW-BBA-001-SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX90, or try a keyword search, such as Rotary Position Sensors
