MLX90821LXG-DBA-006-RE - Melexis

Description: Board Mount Pressure Sensors Packaged factory calibrated integrated relative pressure sensor delivering a ratiometric analog or SENT digital signal -0.2 to 0.5bar relative pressure / 4.5V to 0.5V analog output

Download MLX90821LXG-DBA-006-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

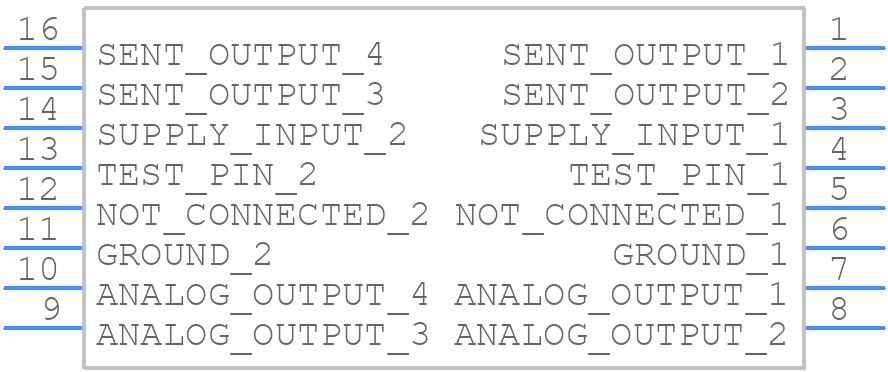

Symbol
MLX90821LXG-DBA-006-RE - Melexis - PCB symbol
click to zoom

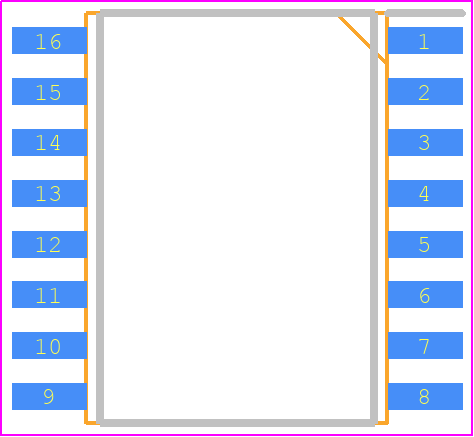

PCB Footprints
MLX90821LXG-DBA-006-RE - Melexis PCB footprint - Other - Other - MLX90809LXG-EAD-000-SP
click to zoom
3D Models
MLX90821LXG-DBA-006-RE - Melexis - 3D model - Other - MLX90809LXG-EAD-000-SP
click to zoom

MLX90821LXG-DBA-006-RE Details

  • Manufacturer Part Number:

    MLX90821LXG-DBA-006-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Date Of Intro:

    2019-10-18

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    7

  • Accuracy-Max (%):

    1%

  • Additional Feature:

    OVERVOLTAGE PROTECTION, REVERSE POLARITY PROTECTION

  • Body Breadth:

    7.492 mm

  • Body Height:

    2.307 mm

  • Body Length or Diameter:

    10.198 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Operating Current-Max:

    11 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    4.50-0.50V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    7.25 Psi

  • Pressure Range-Min:

    -2.9 Psi

  • Pressure Sensing Mode:

    RELATIVE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MLX90821LXG-DBA-006-RE Frequently Asked Questions (FAQs)

  • Melexis provides a recommended PCB layout in their application note AN302000, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal stability.
  • Melexis provides a calibration procedure in their application note AN302001, which includes steps for offset and gain calibration, as well as recommendations for calibration equipment and software.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, Melexis recommends derating the device's performance at temperatures above 125°C to ensure long-term reliability and accuracy.
  • Yes, the MLX90821LXG-DBA-006-RE is designed to withstand high-vibration environments, but Melexis recommends following their guidelines for vibration testing and ensuring proper PCB mounting and mechanical design to minimize the risk of mechanical stress and damage.
  • Melexis provides guidelines for EMC design and testing in their application note AN302002, which includes recommendations for PCB layout, shielding, and filtering to minimize electromagnetic interference and ensure compliance with relevant standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MLX90821LXG-DBA-006-RE Overview

Use the download button to access the MLX90821LXG-DBA-006-RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX90, or try a keyword search, such as Pressure Sensors
