Part Image

MMA3201KEG - NXP

Description: Freescale MMA3201KEG 2-Axis Accelerometer IC, 360 → 440 Hz 5V 20-Pin SOIC

Download MMA3201KEG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

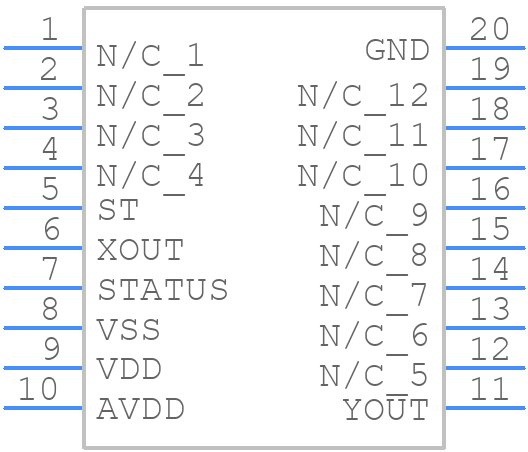

MMA3201KEG - NXP - PCB symbol
click to zoom
PCB Footprints
MMA3201KEG - NXP PCB footprint - Small Outline Packages - Small Outline Packages - MMA3201KEG
click to zoom
3D Models
MMA3201KEG - NXP - 3D model - Small Outline Packages - MMA3201KEG
click to zoom

MMA3201KEG Details

  • Manufacturer Part Number:

    MMA3201KEG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    7.50 X 12.80 MM, 1.27 MM PITCH, ROHS COMPLIANT, SOIC-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.815 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.55 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MMA3201KEG Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the MMA3201KEG application note (AN4399) which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The MMA3201KEG does not require calibration in the classical sense, as it is a self-contained accelerometer with internal calibration. However, users may need to perform a zero-g offset calibration to account for any offset errors. This can be done by taking readings at zero-g and subtracting the offset from subsequent readings.
  • The MMA3201KEG is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and accuracy.
  • Yes, the MMA3201KEG is designed to operate in high-vibration environments and can withstand vibrations up to 10,000 g. However, it's essential to ensure proper mounting and mechanical isolation to prevent damage to the device.
  • The MMA3201KEG communicates through a 2-wire or 4-wire SPI interface, and NXP provides example code and interface guidelines in the MMA3201KEG datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MMA3201KEG Overview

Use the download button to access the MMA3201KEG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMA32, or try a keyword search, such as Other Signal Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
