MMA7341LCT - NXP

Description: Accelerometers 3G XYZ LOW G ANALOG

Download MMA7341LCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

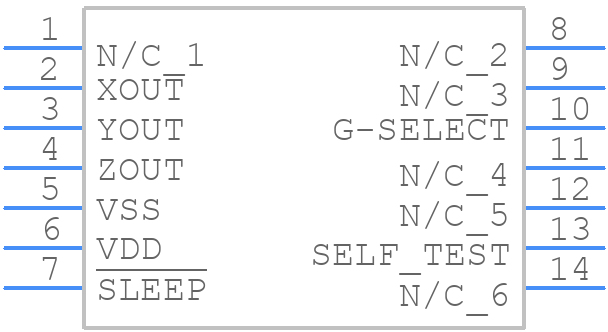

MMA7341LCT - NXP - PCB symbol
click to zoom
PCB Footprints
MMA7341LCT - NXP PCB footprint - Other - Other - 14 LEAD LGA CASE 1977-01
click to zoom
3D Models
MMA7341LCT - NXP - 3D model - Other - 14 LEAD LGA CASE 1977-01
click to zoom

MMA7341LCT Details

  • Manufacturer Part Number:

    MMA7341LCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-N14

  • Length:

    5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    LGA14,3X6,31

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

MMA7341LCT Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN4391, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The MMA7341LCT does not require calibration. It is a self-contained accelerometer with internal calibration and temperature compensation. However, users may need to perform a zero-g offset calibration depending on their specific application requirements.
  • The MMA7341LCT is rated for operation from -40°C to +85°C. However, the device can tolerate short-term excursions up to 150°C during reflow soldering.
  • Yes, the MMA7341LCT is designed to operate in high-vibration environments. It has a high shock survival rating of 10,000 g and can withstand vibrations up to 10 kHz.
  • The MMA7341LCT has a digital output that can be interfaced with a microcontroller using a standard SPI or I2C interface. NXP provides example code and application notes to help with the interface design.
