MMBD4448-7-F - Diodes Incorporated

Description: Diodes Inc MMBD4448-7-F Switching Diode, 3-Pin SOT-23

Download MMBD4448-7-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

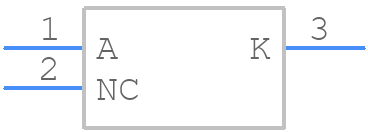

Symbol
MMBD4448-7-F - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
MMBD4448-7-F - Diodes Incorporated PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - MMBD4448-7-F
click to zoom
3D Models
MMBD4448-7-F - Diodes Incorporated - 3D model - SOT23 (3-Pin) - MMBD4448-7-F
click to zoom

MMBD4448-7-F Details

  • Manufacturer Part Number:

    MMBD4448-7-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.72 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    2 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    0.25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.35 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    75 V

  • Reverse Recovery Time-Max:

    0.004 µs

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MMBD4448-7-F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MMBD4448-7-F is -55°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended derating curves for voltage and current, and to consider the device's thermal resistance and power dissipation.
  • The MMBD4448-7-F has built-in ESD protection and latch-up prevention measures, including a protection diode and a latch-up prevention circuit. However, it's still important to follow proper handling and assembly procedures to prevent damage.
  • Yes, the MMBD4448-7-F can be used in switching regulator applications, but it's essential to consider the device's switching characteristics, such as rise and fall times, and to ensure that the device is properly biased and terminated.
  • To prevent damage, it's recommended to store the MMBD4448-7-F in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps and mats to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MMBD4448-7-F Overview

Use the download button to access the MMBD4448-7-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMBD4, or try a keyword search, such as Rectifier Diodes
