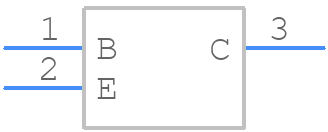

MMBT2222AT-7-F - Diodes Incorporated

MMBT2222AT-7-F Details

• Manufacturer Part Number:

  MMBT2222AT-7-F

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  GREEN, ULTRA SMALL, PLASTIC PACKAGE-3

• Pin Count:

  3

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  7

• Collector Current-Max (IC):

  0.6 A

• Collector-Emitter Voltage-Max:

  40 V

• Configuration:

  SINGLE

• DC Current Gain-Min (hFE):

  40

• JESD-30 Code:

  R-PDSO-G3

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  NPN

• Power Dissipation-Max (Abs):

  0.15 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  300 MHz

• Turn-off Time-Max (toff):

  285 ns

• Turn-on Time-Max (ton):

  35 ns
