The recommended land pattern for the MMBZ5V6ALYT116 can be found in the ROHM Semiconductor's packaging specification document, which provides detailed information on the recommended pad layout and dimensions for optimal soldering and reliability.
To prevent damage, it is recommended to handle the MMBZ5V6ALYT116 by the body or the leads, avoiding touching the glass diode surface. Additionally, the device should be stored in an anti-static bag or wrapped in anti-static material to prevent electrostatic discharge (ESD) damage.
While the datasheet specifies a maximum reverse voltage of 5.6V, it is generally recommended to derate the voltage by 10-20% to ensure reliable operation and prevent premature failure. Therefore, the maximum allowable voltage that can be applied to the MMBZ5V6ALYT116 is around 4.5-5.0V.
The MMBZ5V6ALYT116 is rated for operation up to 150°C, but its performance and reliability may degrade at higher temperatures. If the application requires operation above 150°C, it is recommended to consult with ROHM Semiconductor or consider using a different device specifically designed for high-temperature applications.
The MMBZ5V6ALYT116 has a polarity mark on the cathode side, which is indicated by a band or a dot. The cathode side should be oriented according to the circuit design requirements, and the device should be installed accordingly to ensure correct operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MMBZ5V6ALYT116 Overview

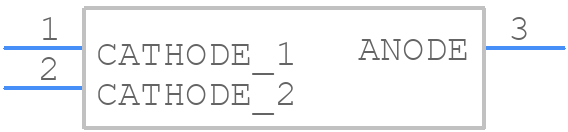

Use the download button to access the MMBZ5V6ALYT116 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMBZ5,
or try a keyword search, such as Transient Suppressors
