MMC5983MA - MEMSIC

Description: 3-AXIS MAGNETIC SENSOR

Download MMC5983MA Model

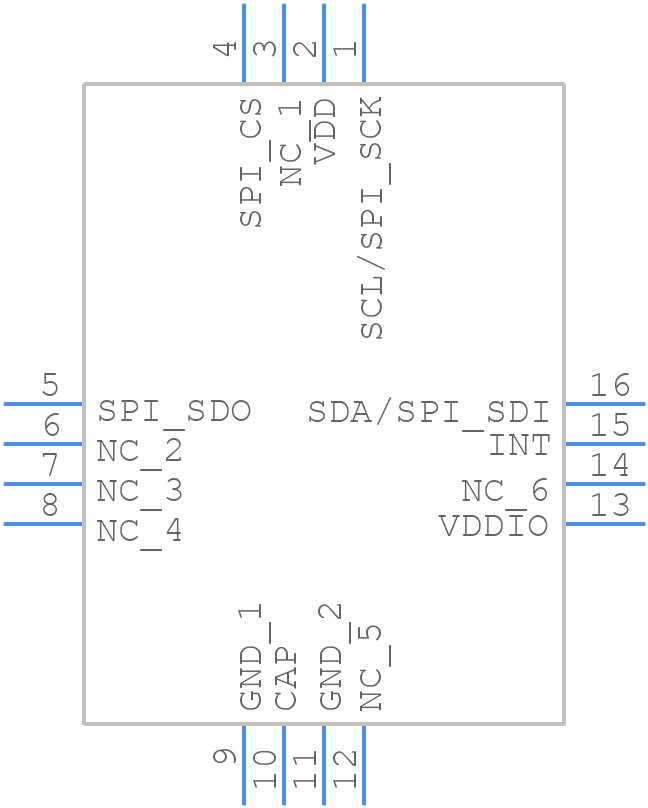

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MMC5983MA - MEMSIC PCB footprint - Other - Other - MMC5983MA-7
click to zoom
3D Models
MMC5983MA - MEMSIC  - 3D model - Other - MMC5983MA-7
click to zoom

MMC5983MA Details

  • Manufacturer Part Number:

    MMC5983MA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LGA-16

  • ECCN Code:

    EAR99

  • Manufacturer:

    Memsic Inc

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Interface Type:

    I2C/SPI

  • Output Range:

    0.60-2.40V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MMC5983MA Frequently Asked Questions (FAQs)

  • A good PCB layout for the MMC5983MA involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
  • The MMC5983MA requires a one-time calibration process to adjust for any offset and sensitivity variations. This can be done by applying a known magnetic field and measuring the output. The calibration process typically involves rotating the sensor in a known magnetic field and recording the output values.
  • The MMC5983MA is rated for operation from -40°C to 125°C, but the accuracy and sensitivity may degrade at extreme temperatures. It's recommended to operate the sensor within the -20°C to 85°C range for optimal performance.
  • Yes, the MMC5983MA is designed to operate in high-vibration environments. However, it's essential to ensure the sensor is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To minimize noise and interference, use a low-pass filter or a digital filter in the microcontroller to filter out high-frequency noise. Additionally, ensure proper PCB layout, use a solid ground plane, and keep the sensor away from high-current carrying traces.
