Samtec provides a recommended PCB layout and land pattern in their application notes and design files, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and reliable connections.
To ensure reliable mating and unmating, make sure to follow the recommended mating and unmating sequence, and apply a gentle, consistent force. Avoid applying excessive force, which can damage the connector or the PCB.
The MMCX-J-P-H-ST-MT1 connector is designed to operate up to 6 GHz, making it suitable for high-frequency applications such as Wi-Fi, Bluetooth, and GPS.
While the MMCX-J-P-H-ST-MT1 connector is designed to be compatible with other MMCX connectors, it's essential to verify compatibility with specific connectors from other manufacturers, as there may be slight variations in design or materials.
Lead times and minimum order quantities may vary depending on the region, distributor, and availability. It's best to check with authorized distributors or Samtec's customer service for the most up-to-date information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MMCX-J-P-H-ST-MT1 Overview

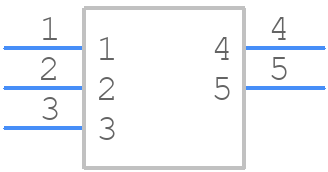

Use the download button to access the MMCX-J-P-H-ST-MT1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMCX-,
or try a keyword search, such as RF MCX/MMCX Connectors
