The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the MMS-120-01-L-DH connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The MMS-120-01-L-DH connector has an operating temperature range of -55°C to +125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The MMS-120-01-L-DH connector has a sealed design, but it's not intended for immersion in water or exposure to high humidity. If you need to use the connector in a humid or wet environment, consider using a connector with a higher IP rating or applying additional sealing measures.
The MMS-120-01-L-DH connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environment, and handling of the connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MMS-120-01-L-DH Overview

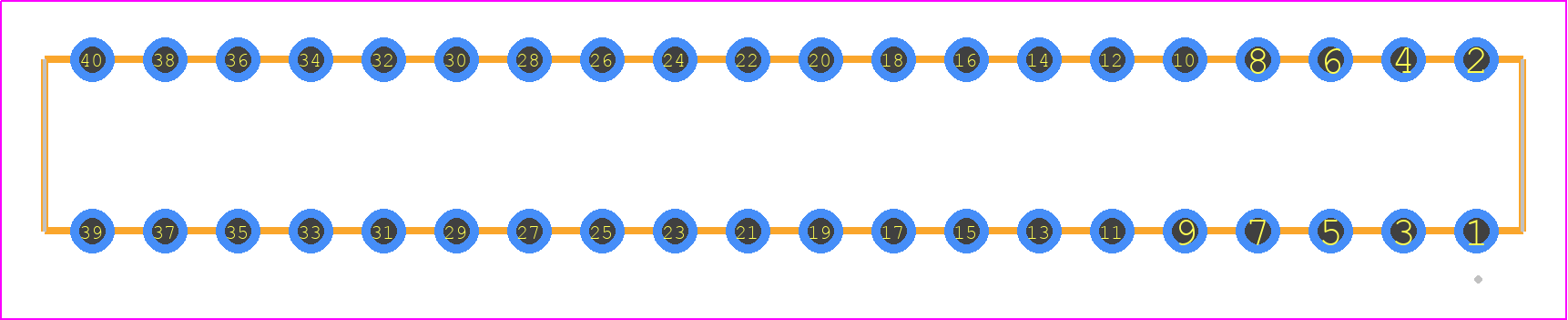

Use the download button to access the MMS-120-01-L-DH schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MMS-1,
or try a keyword search, such as Headers and Edge Type Connectors
